Prerequisite: Make sure that you have enabled the integration with a ePO - On-prem server.
DXL integration is disabled by default for a device. You can enable it to inherit settings from the domain or be independent for the device.
Go to → → → → → .
The Data Exchange Layer (DXL) Integration page appears.
You have the option to use DXL integration preferences including ePO - On-prem server settings used in the domain. To use this option, select the Inherit Settings? checkbox.
The remaining options are immediately disabled when you select this option.
If you have chosen to inherit settings from the domain, click Save. If not, proceed to step 4.
Select the Enable DXL Integration? checkbox.
The Trellix ePO - On-prem server configuration fields are displayed.
Enter the ePO - On-prem server IPv4 address.

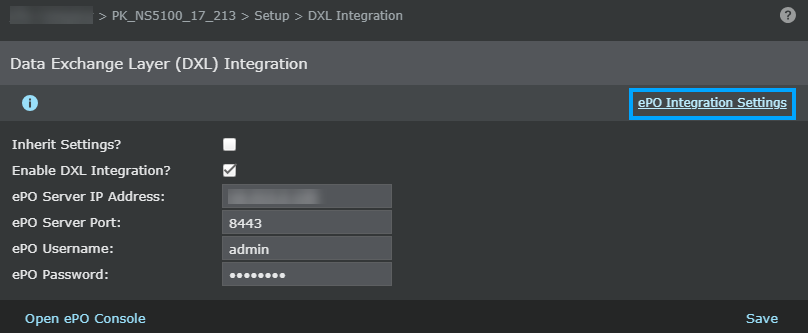

Trellix DXL integration for a device shows settings specific to it.png "GUID-5E337B27-8895-4A28-9C36-C66B9C247BC0-low.png")
Enter the port that the Sensor must use to communicate with ePO - On-prem.
Enter the credentials the Sensor must use to access ePO - On-prem.
Note
The credentials you configure here need not be the same credentials as those entered in the ePO Integration page. To review this configuration, click the ePO Integration Settings hyperlink at the top-right corner of this page.
Click Save to confirm your settings.
DXL integration is now enabled with settings specific to this device.
