Enable Intelligent Virtual Execution (IVX) engine integration for an admin domain

You can configure the details for the integration at an admin domain so that the corresponding Sensors and child domains can inherit these settings. However, you must enable the integration at the Sensor level for the Sensor and the Manager to be able to communicate with Intelligent Virtual Execution (IVX) engine.

In the Manager, select the Devices tab.
Select the required domain from the Domain drop-down list and then select Global.
Select IPS Device Settings → IVX Integration.
Select Enable IVX Integration checkbox.

Choose Enable IVX or Enable IVX Cloud configure them.

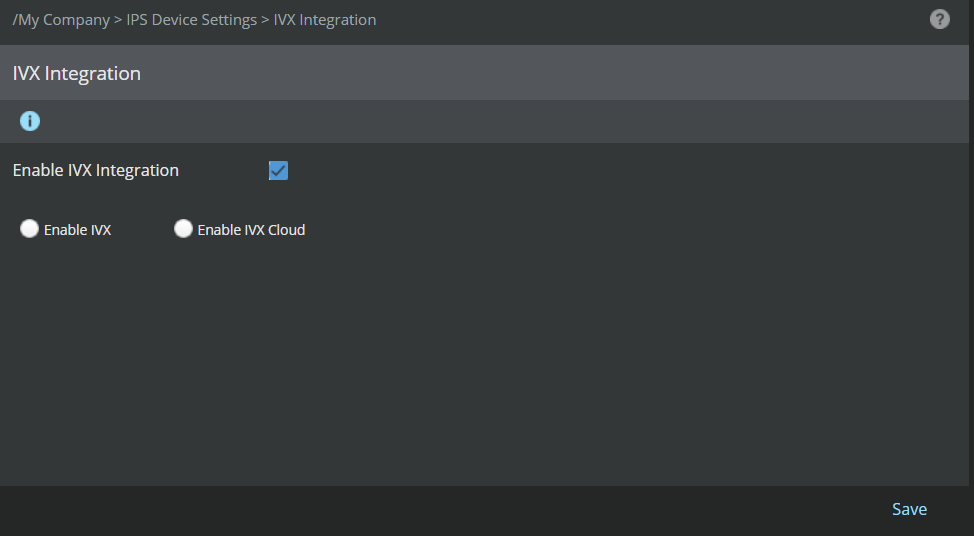

Enabling IVX Integration for an admin domain

Option definitions

Option	Definition
Enable IVX Integration	Select this option to integrate the Manager and Sensor with the IVX appliance or IVX Cloud. Enable IVX: Enables IVX appliance integration Enable IVX Cloud: Enables IVX Cloud integration After you select, you will be able to view and configure the details for the integration. Note At any instance, you can choose to integrate either IVX or IVX Cloud with Trellix IPS, but not both of them together.
Save	Click Save when you enable or disable IVX Integration.

Option

Definition

Enable IVX Integration

Select this option to integrate the Manager and Sensor with the IVX appliance or IVX Cloud.

Enable IVX: Enables IVX appliance integration

Enable IVX Cloud: Enables IVX Cloud integration

After you select, you will be able to view and configure the details for the integration.

Note

At any instance, you can choose to integrate either IVX or IVX Cloud with Trellix IPS, but not both of them together.

Save

Click Save when you enable or disable IVX Integration.

Enable and Configure integration with IVX Appliance

To enable and configure an IVX appliance integration, select the Enable IVX option.

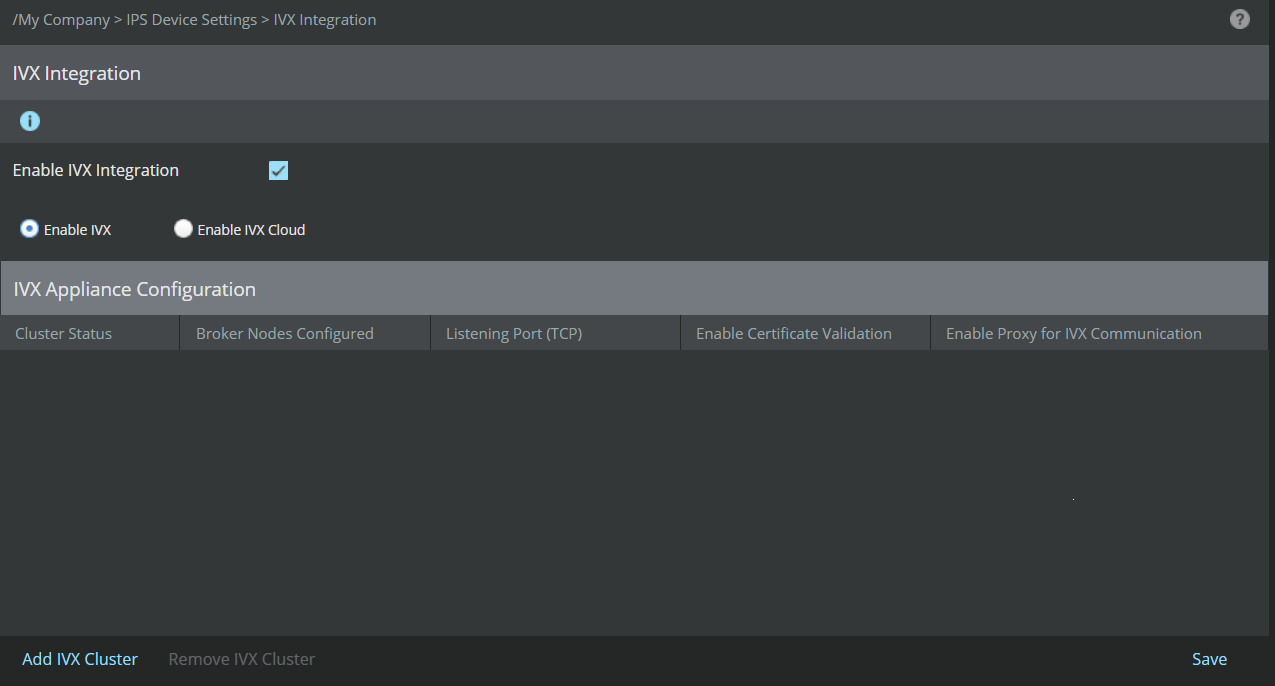

Enabling IVX Appliance Integration for an admin domain

Option definitions

Option		Definition
IVX Appliance Configuration	Cluster Status	Displays the status of the cluster that an IVX broker node belongs to. Ready: Cluster is ready and all the broker nodes are active. : Any state other than Ready when one or more brokers are affected. ---: Not available. Note The file submission to the cluster happens if the status is either or . However, in the state, a few broker nodes might be down/not reachable but the file submission continues to happen to the active broker nodes.
	Broker Nodes Configured	Lists the IP address of the broker nodes configured for communication.
	Listening Port	Displays the port that IVX appliance will listen for connections from Sensor and Manager. The default port is 443 and users cannot change it.
	Enable Certificate Validation	Displays the status of the certificate validation as Enabled or Disabled.
	Enable Proxy for IVX Communication	Displays the status of the proxy communication as Enabled or Disabled.
Add IVX Cluster		Allows you to add a cluster consisting of IVX broker nodes.
Remove IVX Cluster		Use this option if you plan to remove an existing cluster.
Save		Saves the integration details in the Manager database and applies it to the inherited child domain(s)/device(s).

Note

The Add IVX Cluster, Remove IVX Cluster, and Save options will be hidden if:

You are viewing this page as a user with read-only access (or)
Manager is in Standby mode

The Add IVX Cluster option allows you to add a cluster and its associated broker nodes. Click Add IVX Clusterdisplayed in the image Enabling IVX Integration for an admin domain.

A new page opens where you can configure the cluster and its associated broker nodes.

Adding broker nodes to a cluster

Option definitions

Option		Definition
Cluster Details Note Configuration made in this section will be applicable to all the broker nodes that you add.	Enable Certificate Validation	Select this option if you have configured CA signed certificate on the IVX appliance. If the certificate is configured on the appliance, it is recommended to enable this option to ensure secure communication.
	Enable Proxy for IVX communication	Select this option if you deployed proxy server between the IPS (Sensor and Manager) and the IVX appliance. You need to configure proxy server at device level page and enable proxy option under the IVX Appliance Configuration section.
	Listening Port (TCP)	This is the port that IVX appliance will listen for connections from Sensor and Manager. The default port is 443 and users cannot change it.
	Cluster Status	Displays the status of the cluster that an IVX broker node belongs to. Ready: Cluster is ready and all the broker nodes are active. : Any state other than Ready when one or more brokers are affected. ---: Not available.
Broker Nodes	Server Address	Enter the IP address (IPv4/IPv6) or Host Name of the IVX broker for communicating with the Manager and Sensor.
	Username	Username of the IVX broker node.
	Manager to IVX Authentication Status	Displays the authentication status of the Manager with the IVX appliance. Successful: Manager to IVX authentication is successful. Unsuccessful: Manager to IVX authentication failed. User needs to recheck the credentials entered. ---: Yet to be configured.
	Manager to IVX Authentication Failure Reason	In case of Manager to IVX authentication failure, this column displays the reason for failure which helps users to take corrective actions and attain successful authentication. In case of a successful connection, the column displays the status as ---.
	Test connection	Click to verify if the Manager is able to communicate with the broker node(s) using the details you configured. A Result pop-up appears displaying the status of the connection for all the configured broker nodes. Note When you click Test connection, the action is performed over all the newly added and existing broker nodes and the result is displayed.
		Click this button to add a broker node. Note You can add a maximum of 5 broker nodes within a cluster. Note Users should ensure that the broker nodes added in this section belong to the same IVX cluster.
		Click this button to remove newly added or existing broker nodes. You can delete only one node at a time.
Next		Click this option upon modifying the broker node(s).
Cancel		Click this option to cancel the add/delete operation performed on the broker nodes.

Note

Cluster Status, Manager to IVX Authentication Status, and Manager to IVX Authentication Failure Reason are updated only when you save the configuration changes.

Upon clicking , Add Broker Node panel appears in the right pane.

Adding broker node details

Option definitions

Option	Definition
Server Address	Enter the IP address (IPv4/IPv6) or Host Name of the IVX broker for communicating with the Manager and Sensor.
Username	Enter the username of the IVX broker node.
Password	Enter the password of the IVX broker node.
Add	Click Add upon entering the broker node details. Note The Add button remains grayed out if you enter invalid IP address.
Update	Double-click an existing broker node if you plan to make any modifications in it. Upon updating the fields with valid inputs, click Update.

Upon configuring the cluster and the broker nodes, click Next. You will be redirected to the IVX Integration home page., click Save.

Once the changes are saved, the IVX Appliance Configuration section appears as shown below:

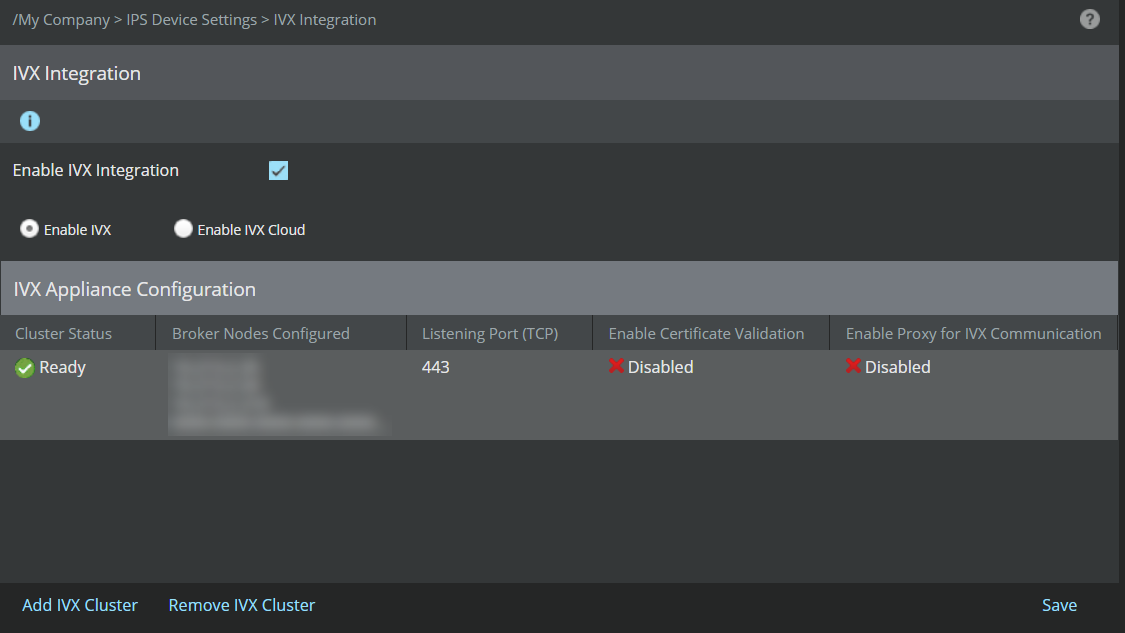

IVX Appliance Configured

Note

If you plan to modify an existing cluster, double-click the cluster to go to the next page where you can update the Cluster Details and the Broker Nodes. Follow the above steps to make the modifications.

Enable and Configure integration with IVX Cloud

To enable and configure IVX cloud integration, select the Enable IVX Cloud option.

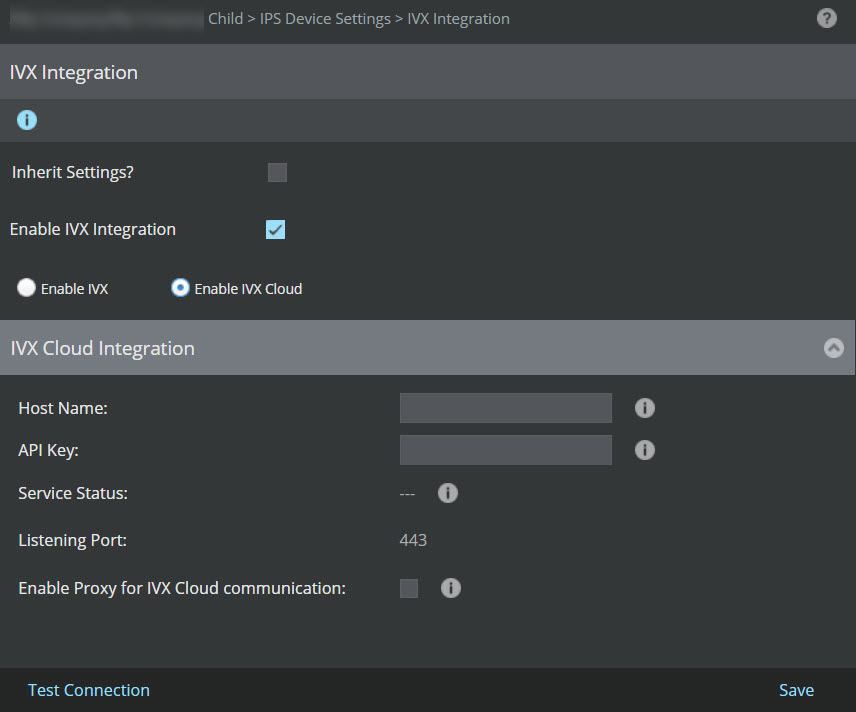

Enabling IVX Integration for an admin domain

Option definitions

Option		Definition
IVX Cloud Integration	Host Name	Enter the host name for the IVX Cloud service (that is, the domain name on which IVX Cloud service is hosted). Note You need to add a firewall exception to the domain (that you enter as Host Name) to ensure uninterrupted communication. For more information, see Set the desktop firewall.
	API Key	Enter the API key created in the IVX Cloud portal. This key is used for authentication and it retrieves the IVX Cloud service status. Note The maximum character length supported is 6000.
	Service Status	Displays the status of IVX Cloud service. RUNNING: The IVX Cloud service is running and is available for malware file polling and retrieving the analysis reports. The details of subscription and the files daily quota are also displayed underneath the RUNNING status. Failed: User needs to recheck the configuration settings and the status of the IVX Cloud service. The failure reason is displayed which can be useful in troubleshooting the issue. ---: Not applicable.
	Listening Port	This is the port that IVX will listen for connections from Sensor and Manager. The default port is 443 and users cannot change it.
	Enable Proxy for IVX Cloud Communication	Select this option if you deployed proxy server between the Sensor and IVX Cloud. You need to configure proxy server at device level page and enable proxy option under the IVX Cloud Integration section.
	Test connection	Click to verify if the Manager is able to communicate with IVX Cloud using the details you configured. If the details entered are correct and the IVX Cloud service is running, a Successful dialog-box appears. This ensures that the Sensors submit suspicious files for analysis, and the Manager retrieves the analysis result and display it in the user interface. Click OK to close the dialog-box. If there is an issue, an Error dialog-box appears displaying the failure reason which can be useful in troubleshooting. Note When you click Test connection, the action is performed over the currently selected configuration.
Save		Saves the integration details in the Manager database and applies it to the inherited child domain(s)/device(s).

Note

The Service Status is updated only when you save the configuration changes.

Upon saving the integration details, the IVX Cloud Integration section appears as shown below:

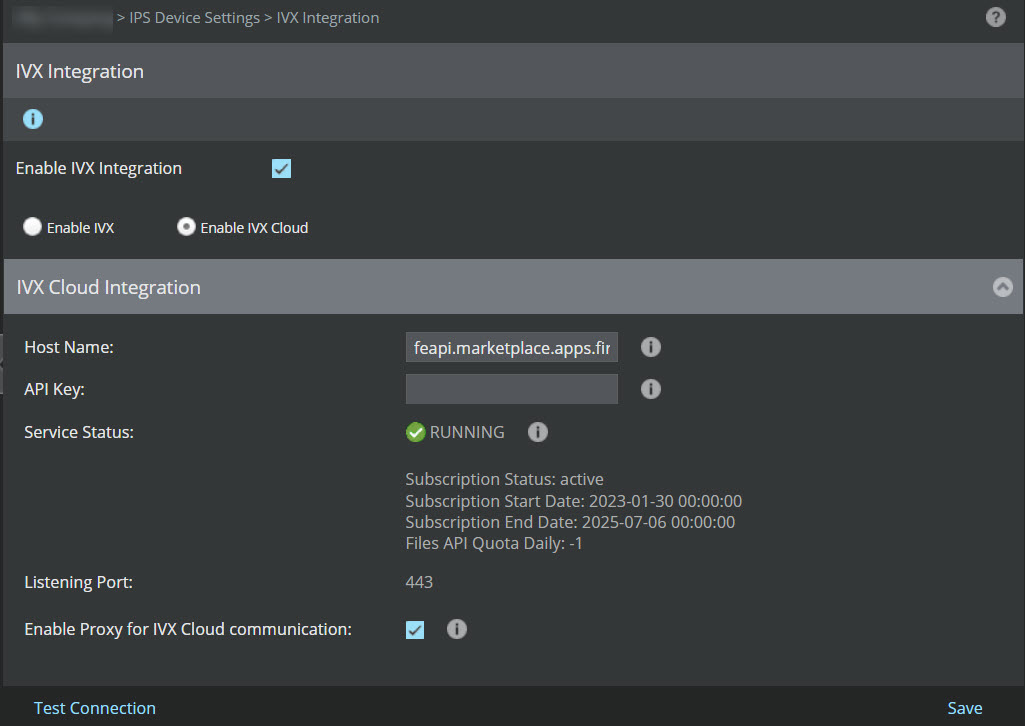

IVX Cloud integrated at domain level
