Enabling the Layer 2 Settingsaction provides permission for the device to go into layer 2 pass-through mode, or fail-open mode, when there are multiple occurrences of critical device faults in a specified period of time. This feature provides another measure for preventing a bottleneck at the device when deployed in High Availability networks.
Note
The Layer 2 Settings mode is on (enabled) by default.
By default, if the device experiences a critical operating error, such as a suspended task or "hung" processor, it reboots. If a device continues to experience critical errors, a reboot is initiated for every critical error. If the device is not closely monitored, the constant rebooting can create a bottleneck at the device. Also, in the case of External Tap and SPAN or Hub monitoring modes, passing traffic is not being inspected.
The Layer 2 Pass-Through mode enables you to set a threshold on the number of critical failures within a configured period of time that the device can experience before being forced into fail-open mode. For example, you configure Layer 2 Pass-Through mode to enable if there are three critical faults in any 10-minute period. At minutes one, three, and seven, faults occur; the Layer 2 Pass-Through Mode is enabled. Here is another scenario: at minutes one, four, eleven, and thirteen, faults occur. In this case, the last three faults occurred within 10 minutes of each other, thus the device enters Layer 2 Pass-Through mode.
Device reboot may take a few minutes to complete. This downtime is not counted against the Layer 2 duration; only device uptime is counted.
Note
The Layer 2 Pass-Through mode is off (not enabled) by default. This option enables fail-open operation for critical faults between Layer 3 and Layer 7 only; failures at Layer 1 and Layer 2 continue to cause a reboot of the device.
Note
The Manager provides the capability to allow Layer 2 bypassing to a Sensor directly from the Manager interface, rather than having to do it from the CLI. The modes Assert and Deassert could now be set from the Manager interface. For more details on enabling the modes, refer to Enable Layer 2 Modes.
The following occurs when Layer 2 Pass-Through Mode is activated:
Processing of traffic on all monitoring ports of the affected device ceases.
The device sends a fault message to the Manager indicating that it is now in Layer 2 Pass-Through mode.
Steps:
For a standalone Sensor, click Devices → <Admin Domain Name> → Devices → <Device Name> → Troubleshooting → Layer 2 Bypass.
For Sensors in a stack, Click Devices → <Admin Domain Name> → Devices → <Device Name> → Member Sensors → <Stackname-node id> → Troubleshooting → Layer 2 Bypass.
Select Yes to enable Layer 2 Pass-Through Monitoring.
Enter a Trigger After value.
The threshold determines the number of critical failures within the Occurring Within time before switching to pass-through mode.
Enter an Occurring Within time.
This time represents the number of minutes within which the Trigger After value must be met to switch into pass-through mode.

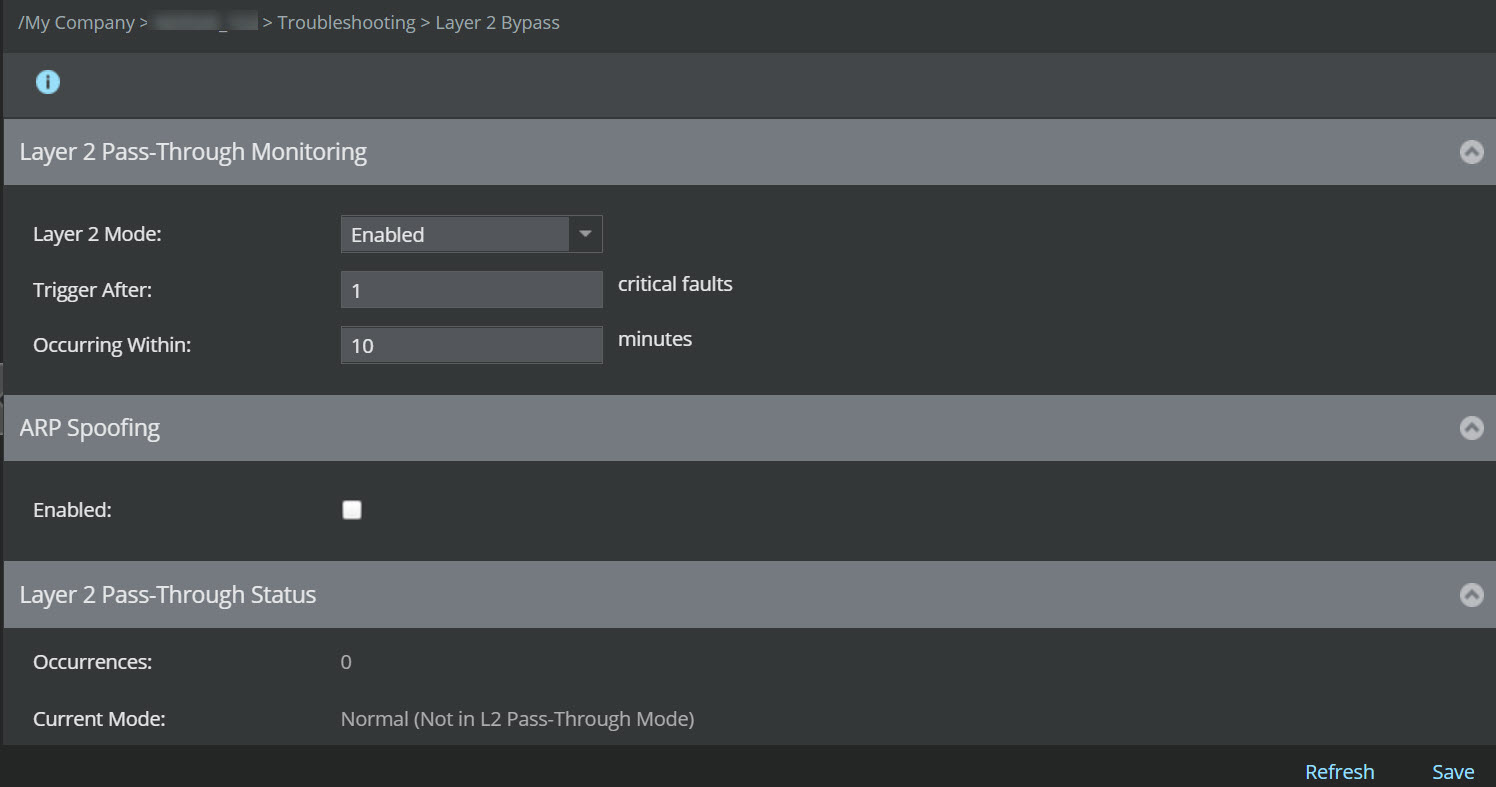

Layer 2 Settings window.jpg "GUID-B3FE7C43-F5CB-454B-8F62-16704EF6C8AF-low.jpg")
Select yes to enable ARP Spoofing on the device.
Click Save.
Once applied, you can view the number of critical faults and current mode in the Layer 2 Pass-Through Status dialog at the bottom of the screen.

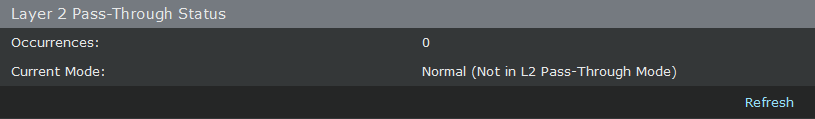

Layer 2 Pass-Through Status dialog.png "GUID-5F587A73-0CBE-4CE1-98B4-530F0ECA0B19-low.png")
Note the following status fields:
Occurrences: current number of threshold-breaching events.
Current Mode: current mode of the device. Normal means that Layer 2 pass-through mode is not enabled in the device. L2 Pass-Through Mode means pass-through mode is enabled.
