Enable Multi-Vector Virtual Execution (MVX) engine integration for an admin domain

You can configure the details for the integration at an admin domain so that the corresponding Sensors and child domains can inherit these settings. However, you must enable the integration at the Sensor level for the Sensor and the Manager to be able to communicate with Multi-Vector Virtual Execution (MVX) engine.

1. In the Manager, select the Devices tab.
2. Select the required domain from the Domain drop-down list and then select Global.

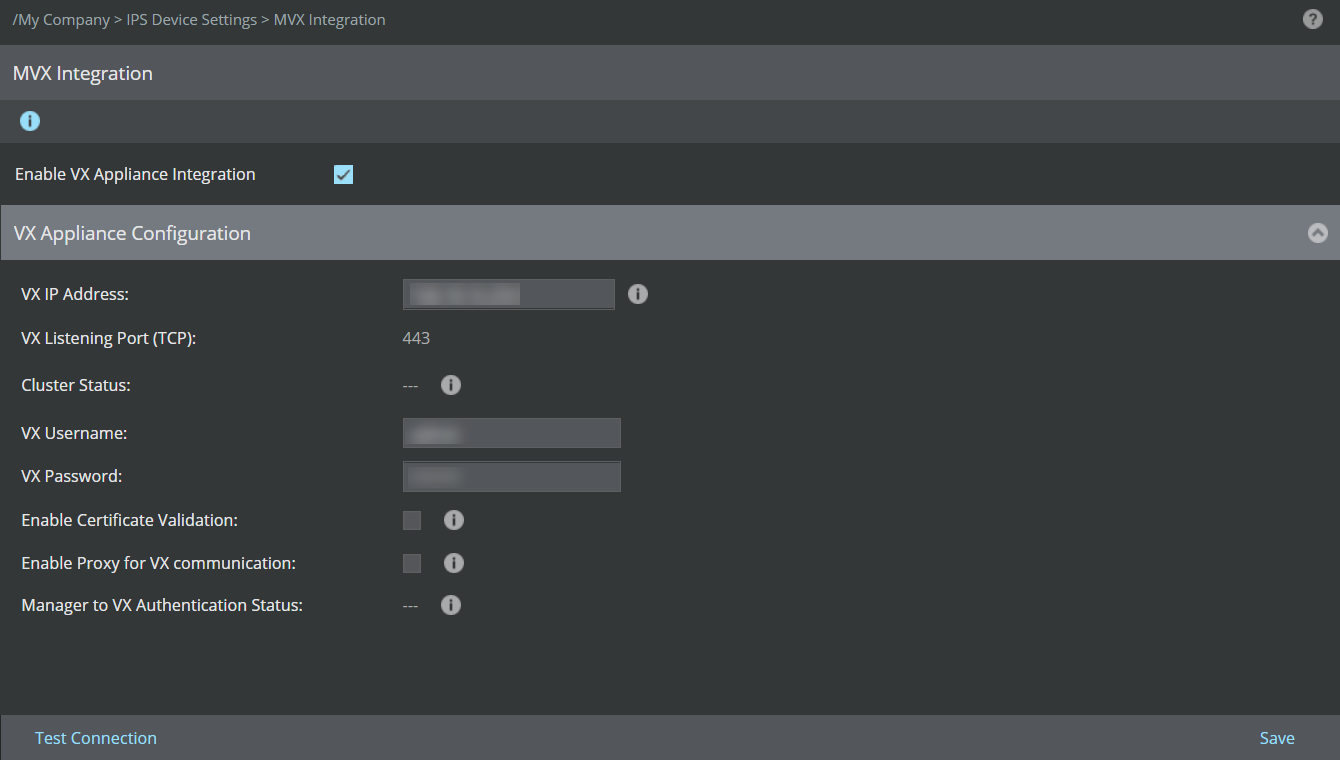

3. Select IPS Device Settings → MVX Integration.
4. Enter the configuration details in the corresponding fields.





   Option definitions

   Option	Definition
   Enable VX Integration	Select this option to integrate the Sensor with the VX appliance. After you select, you will be able to view and configure the details for the integration.
   VX IP Address	Enter the static IPv4 address of the VX broker for communicating with Sensor.
   VX Listening Port (TCP)	This is the port that VX will listen for connections from Sensors. The default port is 443 and users cannot change it.
   Cluster Status	Displays the status of the cluster that a VX node belongs to. Ready: The cluster is active and user can connect to it based on the settings configured. Not Ready: User needs to recheck the VX appliance configuration. In such case, refer to the Virtual Execution Administration Guide. ---: Yet to be configured.
   VX Username	Enter the username of the VX appliance.
   VX Password	Enter the password of the VX appliance.
   Enable Certificate Validation	Select this option if you have configured CA signed certificate on the VX appliance. If the certificate is configured on the appliance, it is recommended to enable this option to ensure secure communication.
   Enable Proxy for VX communication	Select this option if you deployed proxy server between the Sensor and the VX appliance. You need to configure proxy server at device level page and enable proxy option under the VX Appliance Configuration section.
   Manager to VX Authentication Status	Displays the authentication status of the Manager with the VX appliance. Successful: Manager to VX authentication is successful. Unsuccessful: Manager to VX authentication failed. User needs to recheck the credentials entered. ---: Yet to be configured.
   Test connection	Click to verify if the Manager is able to communicate with the VX appliance using the details you configured. It is important that the field Manager to VX Authentication Status and the status as Successful. This ensures that the Sensors submit suspicious files for analysis, and the Manager retrieves the analysis result and display it in the user interface.
   Save	Saves the integration details in the Manager database.
