The Manager → <Admin Domain Name> → Setup → Notification → Faults → SNMP option enables you to specify an SNMP server to which system fault information will be sent from the Manager. You can configure more than one SNMP server where you want to send fault messages. The SNMP Servers page displays the SNMP servers that have been configured. The fields in this page are described within the configuration steps that follow.
To configure an SNMP server to receive system faults from your Manager, do the following:
Steps:
Select Manager → <Admin Domain Name> → Setup → Notification → Faults → SNMP.

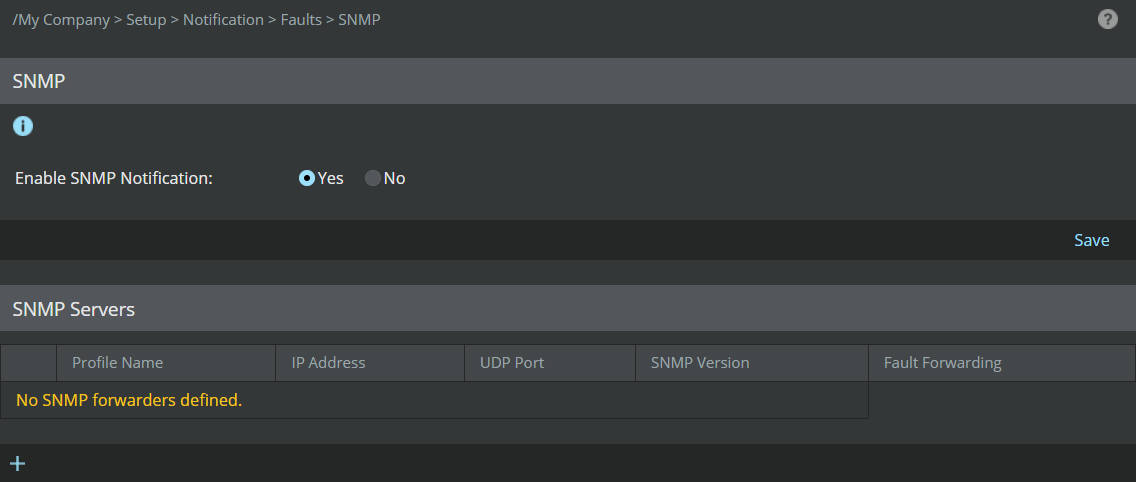

The SNMP tab is displayed where Enable SNMP Notification option and the configured SNMP Servers list is displayed.
.png)
Select Yes against Enable SNMP Notification and click Save.
The fields displayed under the SNMP Servers section are as follows:
Field
Description
Profile Name
The profile name from where notifications are sent
IP Address
IP address of the target server
UDP Port
SNMP listening port of the target server
SNMP Version
The version of SNMP server
Fault Forwarding
The logic by which faults are forwarded to the target server
