To display detailed information about a group of IPS port scan events listed in the IPS Events page, click the entry's expand icon (
) next to the check box.

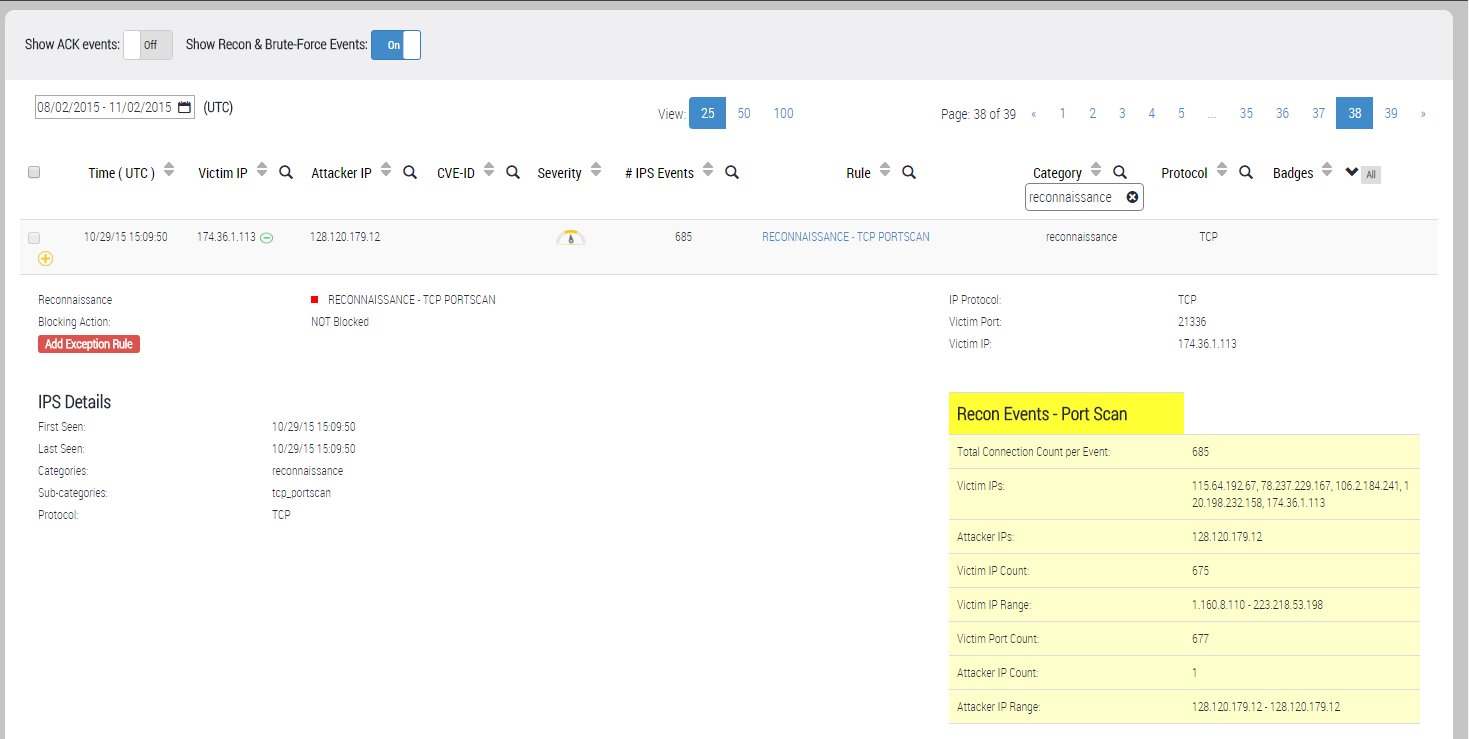

The following example shows the drill-down view of a one-to-many port scan event entry.
The following table describes the port scan-specific fields in the drill-down view of an IPS port scan event entry.
Field | Description |
|---|---|
IP Protocol | TCP or UDP |
Victim Port | Port number last attacked on the most recent victim. |
Victim IP | IP address of the most recent victim. |
Recon Events - Port Scan | |
Total Connection Count per Event | Number of TCP or UDP connections monitored for all events in the entry. |
Victim IPs | IP addresses of the most recent victims (up to 5 addresses). |
Attacker IPs | IP addresses of the most recent attackers (up to 5 addresses). |
Victim IP Count | Number of victims identified. NOTE: This value might be an estimate. |
Victim IP Range | Lowest and highest victim IP addresses. |
Victim Port Count | Number of victim ports identified. NOTE: This value might be an estimate. |
Attacker IP Count | Number of attackers identified. NOTE: This value might be an estimate. |
Attacker IP Range | Lowest and highest attacker IP addresses. |
Note
For most IPS port scan events, certain statistics are estimated values rather than exact counts. The following values are provided as reference information only:
Victim IP Count
Victim Port Count
Attacker IP Count
Analysis of port scan activity is a resource-intensive process. When it is necessary to conserve resources, the analysis process does not record all IP addresses or port numbers involved in the port scan activity. In this case, the process must estimate the count of IP addresses or port numbers. To estimate the count, the process compares the current IP address or port count with the most recent IP addresses or port counts in cache memory.
