This scenario involves inspecting the traffic between virtual machines on the same ESX.

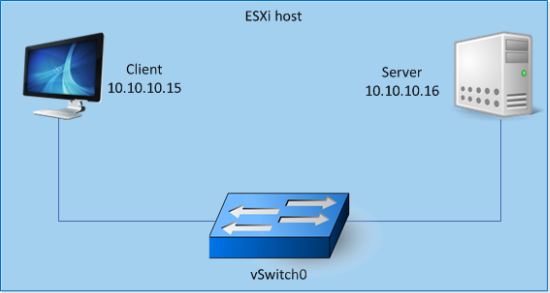

Scenario description before Virtual Sensor deployment
- The clients and servers belong to the same subnet (10.10.10.x).
- The clients and servers are connected to different virtual machine port groups within the same standard vSwitch (vSwitch0).
- For the sake of this discussion, assume that the clients and servers have no access from outside the ESX. That is, there is no physical NIC associated with vSwitch0.
.png?sv=2026-02-06&spr=https&st=2026-11-20T06%3A54%3A18Z&se=2026-11-20T07%3A05%3A18Z&sr=c&sp=r&sig=L0JV3dnRRXLyH8sm%2BJt8VE11Q5dW4fctrrCYKttPGG0%3D)

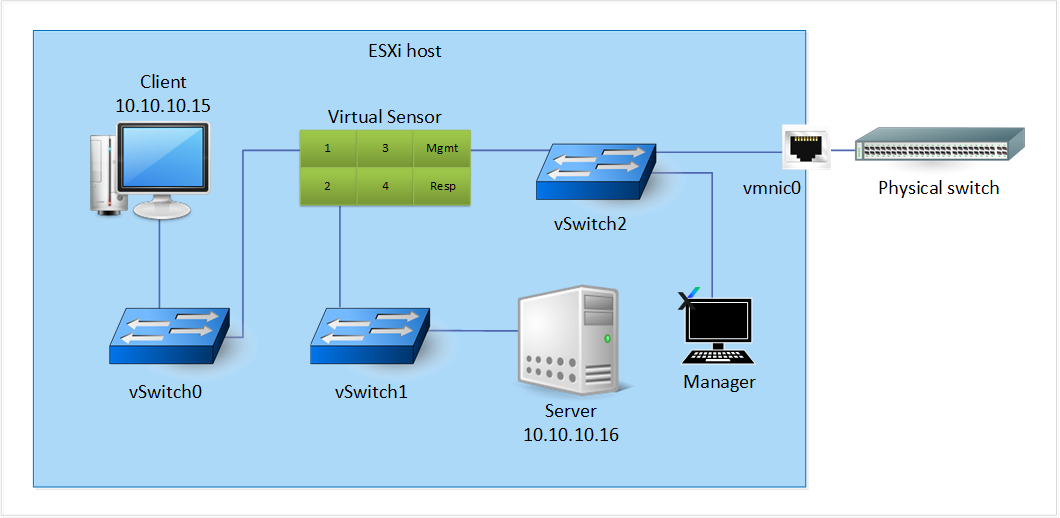

Scenario description after Virtual Sensor deployment
- Two more standard vSwitches (vSwitch1 and vSwitch2) are now added.
- The Virtual Sensor is deployed on the ESX.
- In this scenario, the Manager is installed on a VM connected to vSwitch2.
- In this scenario, the Manager is connected to the management port of the Virtual Sensor through vSwitch2. This vSwitch2 has a physical adapter vminc0. So, you can access the Manager and the Sensor from outside the ESX.
- The monitoring port pair 1-2 of the Virtual Sensor is inline between the client and server.
- The client and the monitoring port 1 are connected to two different port groups within vSwitch0. The port group to which the monitoring port is connected is set to promiscuous mode.
- Similarly, the server and monitoring port 2 are connected to two different port groups within vSwitch1. Any traffic from the client to the server is inspected by the monitoring port pair 1-2.
