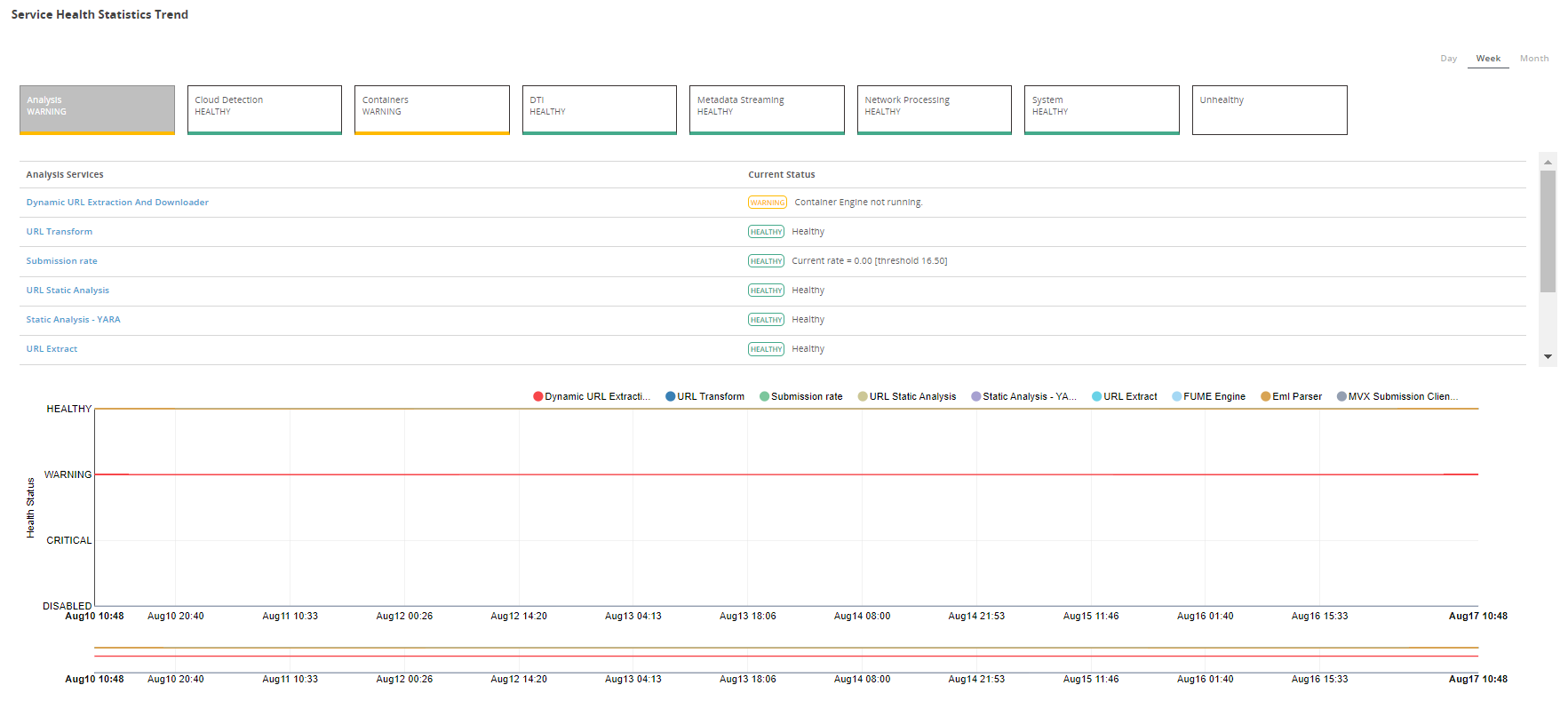

The Service Health Statistics Trend widget graphs the aggregate health level (Healthy, Warning, or Critical) over time for the service categories you select. You can enable health tracking for one or any combination of the following service categories:
Cloud detection
Metadata streaming
Analysis
System
Containers
DTI
Network Processing
Each category tile displays either the current health level or “Disabled.” The health level of the most critical service is highlighted. Select a tile to view a table of all the services in that service category.
.png "ServiceHealthStatisticsTrend1.png")

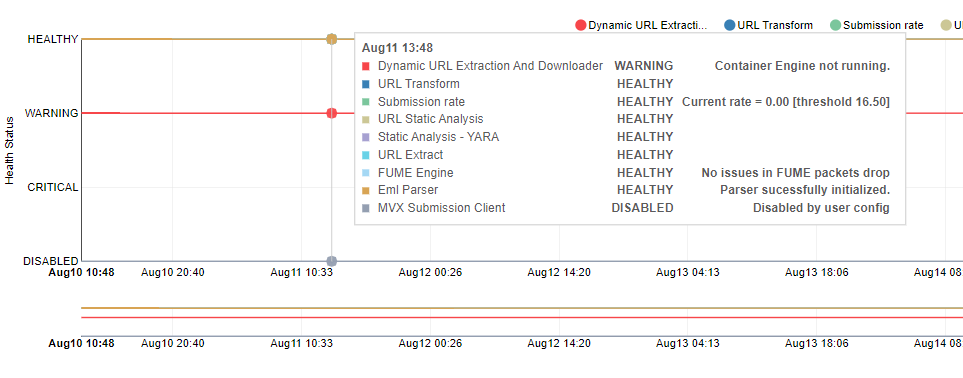

To view the breakdown of service health levels at any point in time, hover over the graph.
.png "ServiceHealthStatisticsTrend2.png")
The IPS event filter health shows recently filtered IPS events. If a signature ID is filtered more than 20 times in a 5-minute period, the health status for the IPS event filter displays Warning. If multiple signature IDs are filtered, only 5 signature IDs are shown in the warning message.
By default, email notification is disabled for the IPS event filter.
