Set the L2 error drop threshold for devices within the admin domain

Select Devices → <Admin Domain Name> → Global → Common Device Settings → Performance Monitoring → Thresholds.

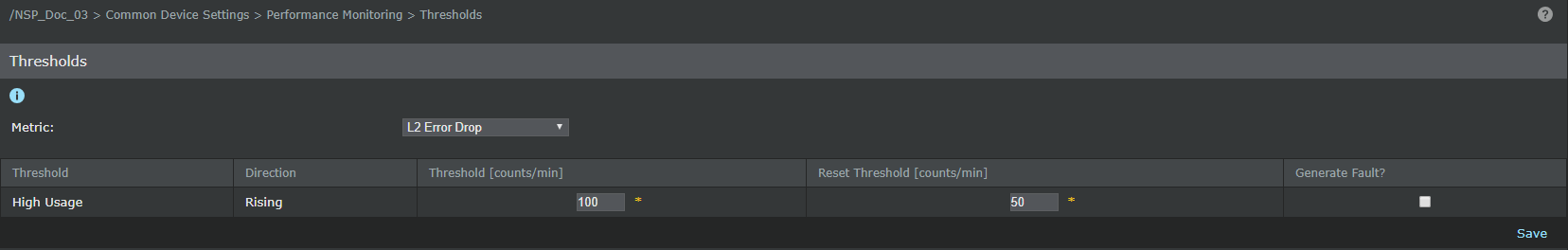

Thresholds dialog

Select L2 Error Drop in the drop down list against Metric.

Enter the required threshold in the Threshold [counts/min] column (this value should be higher than the value in the Reset Threshold [counts/min] column).

Select Generate Fault? to generate fault.

Click Save to save your settings.

Note

Click Defaults to set the threshold settings to the default values.
