If you want to update the Gateway Anti-Malware Engine for an offline Sensor, you will need to manually download the appropriate software version and import it into the Manager.
When the Gateway Anti-Malware engine is enabled for the first time, the engine is in uninitialized state when integrated with a Private GTI cloud. To receive a manual update, the Gateway Anti-Malware engine has to be in initialized state. To initialize the engine, the Sensor has to be online and connected to the Private GTI server to receive the update for the first time. Once the Gateway Anti-Malware engine is initialized after receiving the update from Private GTI server, you can push the updates to the Sensor. For subsequent manual Gateway Anti-Malware engine update, you can download the update and import it to the Manager.
Note
It is important that you download a compatible version of Gateway Anti-Malware Engine files to make sure the update is successful. To ascertain which software versions are compatible with which versions of the Sensor software, refer to Gateway Anti-Malware Engine in the section How an Advanced Malware policy works in Trellix Intrusion Prevention System Product Guide.
Perform the steps listed below to manually download the Gateway Anti-Malware Engine update files and deploy them to your Sensor.
Select Devices → <Admin Domain Name> → Devices → <Device Name> → Setup → Name Resolution.
DNS server is configured for the Sensor to reach the GTI server.
Using a recent version of your browser, go to the Gateway Anti-Malware Update Server URL: https://contentsecurity.skyhigh.cloud/UPDATE.

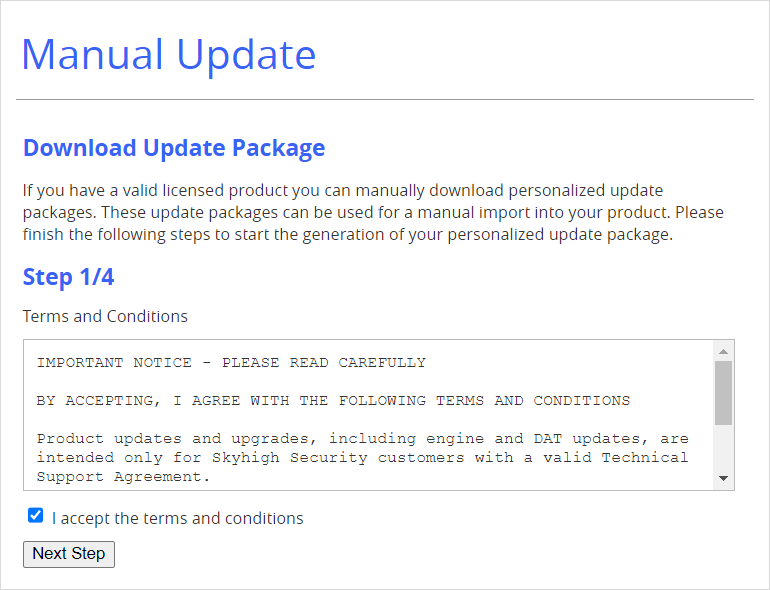

On the page that appears, review the terms and conditions and select the I accept the terms and conditions check-box, and click Next Step.
Accept License Agreement.png "GAM_-_Step_1.png")
You are routed to the next page where you will need to select the appropriate Trellix product.

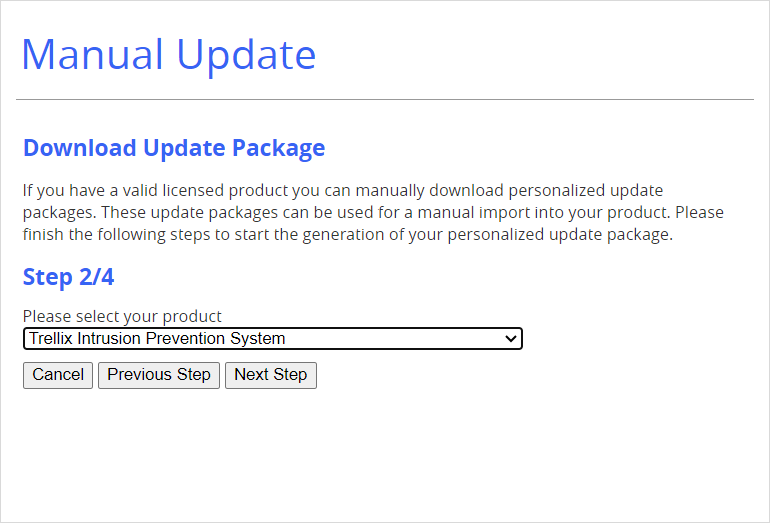

On this page, click the drop-down to select Trellix Intrusion Prevention System, and click Next Step.
Select update package.png "GAM_-_Step_2.png")
You are routed to the next page where you must enter the appropriate version of Sensor software you are using.

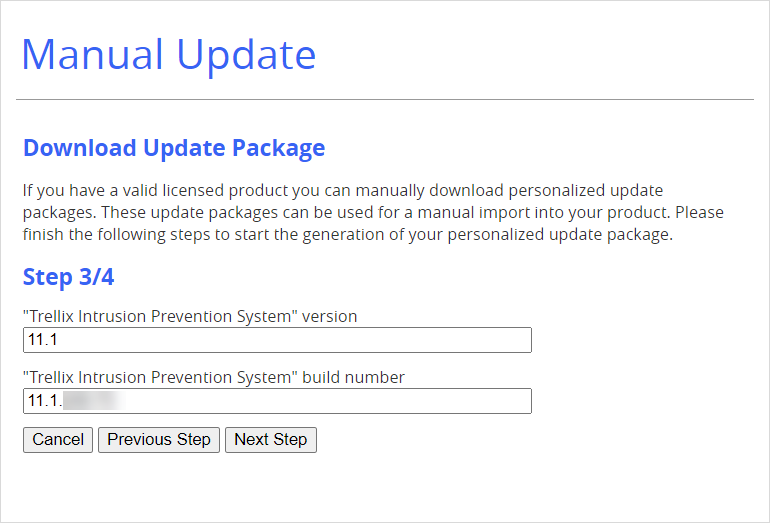

Under step 3:
For "Trellix Intrusion Prevention System" version, enter
11.1if your Sensor runs on 11.1.5.x version, or enter10.1if your Sensor runs on 10.1.5.x version.For "Trellix Intrusion Prevention System" build number, enter
11.1.5.xif your Sensor runs on 11.1.5.x version, or enter10.1.5.xif your Sensor runs on 10.1.5.x version.Click Next Step.
Specify version and build number.png "GAM_-_Step_3.png")
The success or failure of the update will vary depending on the Sensor and Manager software versions you are using. Review this table to know the various combinations and what version you must enter to make sure you download the appropriate Gateway Anti-Malware Engine version.
Gateway Anti-Malware engine compatibility matrixManager
Sensor
Gateway Anti-Malware engine version downloaded
What you must enter...
10.1.7.55 or later
10.1.5.153 or later
2021
You must enter the Sensor software version as 10.1.5.x.
10.1.7.29 or later
10.1.5.41 or later
2019 version 0
You must enter the Sensor software version as 10.1.5.x.
10.1.7.4 or later
10.1.5.3 or later
2017 version 2
You must enter the Sensor software version as 10.1.5.x.
11.1.7.84 or later
11.1.5.84 or later
2023
You must enter the Sensor software version as 11.1.5.x.

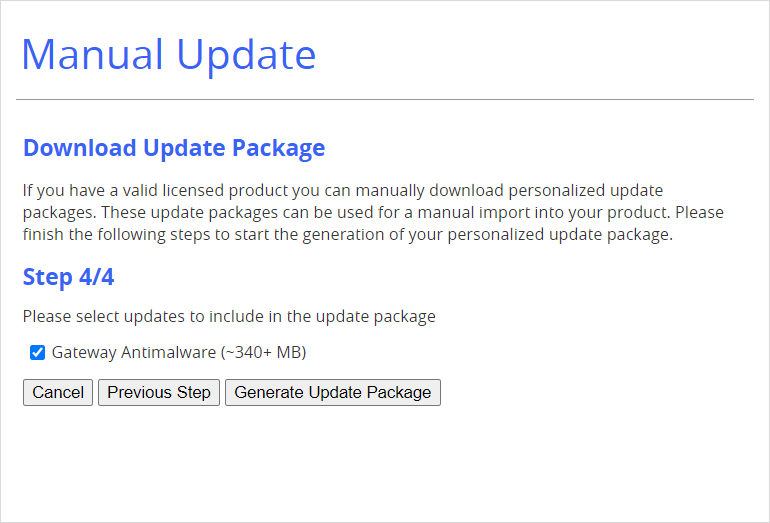

Click Generate Update Package.
Generate Update Package.png "GAM_-_Step_4.png")

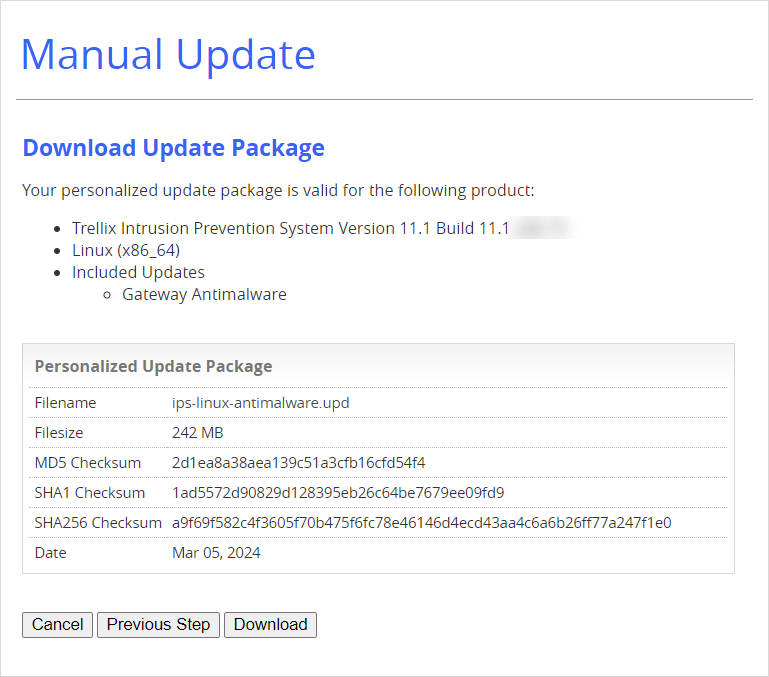

Click Download and save the package to a convenient location.
Download Update Package.png "Download_update_package.png")
After the package is generated, you are shown details about the file such as filename, file size, MD5, SHA1, SHA256 checksums and date.
After the file is downloaded, log on to the Manager and go to Manager → <Admin Domain Name> → Trellix IPS Protection Status. Select Manual Import tab. The Manual Import tab is displayed.
In the Manual Import tab, click Browse, navigate to the file location, and select it.
Select the file and click Import.
pop-up opens giving you the status of the upload.
If you have configured auto-deployment of new GAM updates on the GAM Automatic Deployment tab under Manager → <Admin Domain Name> → Trellix IPS Protection Status, the imported GAM file will be deployed automatically on all the attached Sensors at once at the scheduled time. You can check the deployment status on the User Activities tab under Manager → <Admin Domain Name> → Troubleshooting → Logs. For detailed information on how to configure and schedule auto-deployment of GAM updates, refer to the section Automatic deployment of GAM updates in Trellix Intrusion Prevention System Product Guide.
Note
The automatic deployment of GAM updates is not applicable to NTBA or virtual NTBA devices.
Or,
After the file upload is complete, go to Devices → <Admin Domain Name> → Devices → <Device Name> → Deploy Pending Changes.
the Deploy Pending Changes page, the Pending Changes column displays New Gateway Anti-Malware Versions.
Select the check-box for GAM Updates and click Deploy.
A pop-up window appears showing you the status of the update. Upon successful deployment, click Close in the pop-up window.
Note
If the update fails, it is likely that you have downloaded an incompatible version. Review the compatible versions and the combinations listed in the Gateway Anti-Malware engine compatibility matrix table to ascertain if you have downloaded the appropriate version.
There is an alternate way to deploy the GAM update file to your Sensor from the Device Manager page. To deploy:

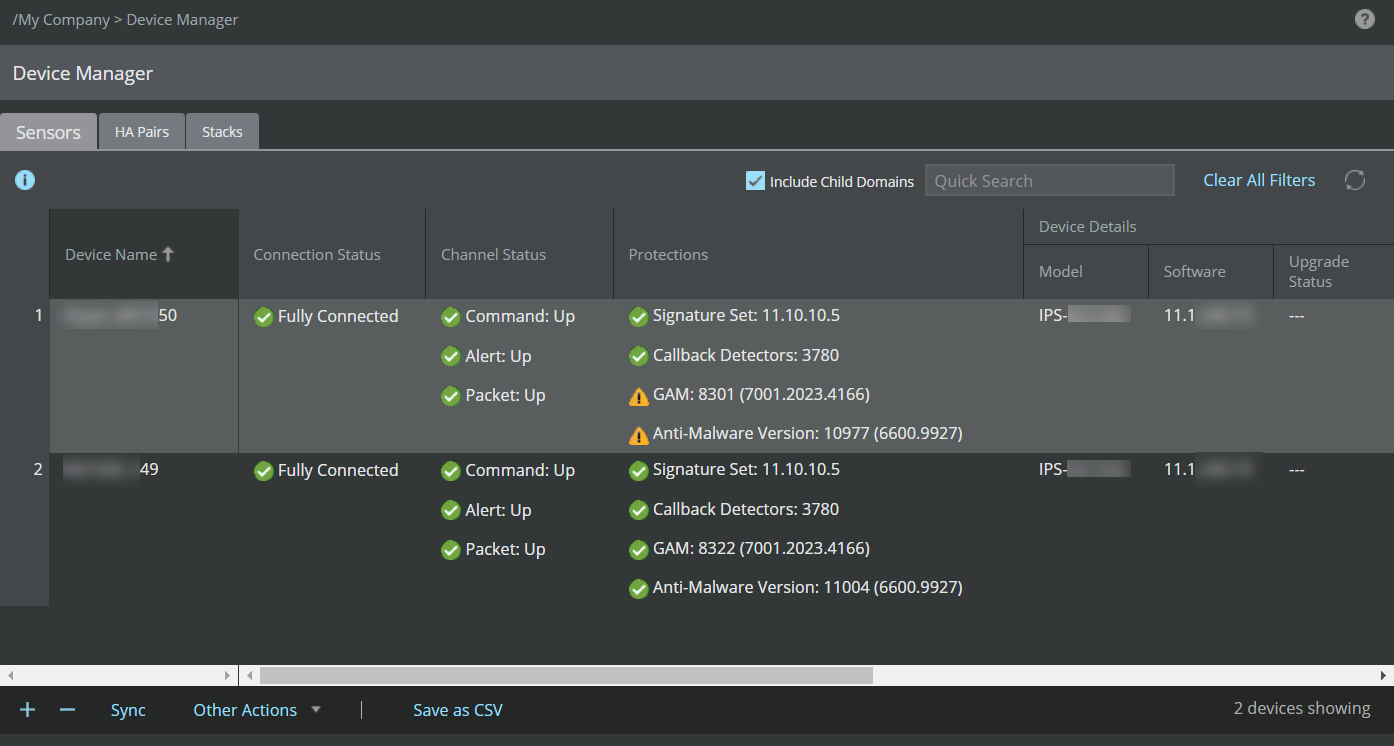

Navigate to Devices → <Admin Domain Name> → Global → Device Manager and select Sensors tab. The Sensors tab is displayed listing all the attached Sensors.
Select the compatible Sensor on which you want to deploy the GAM update file, and click Sync.
Select Sensor to synchronize GAM Updates.png "Sync_GAM_updates.png")

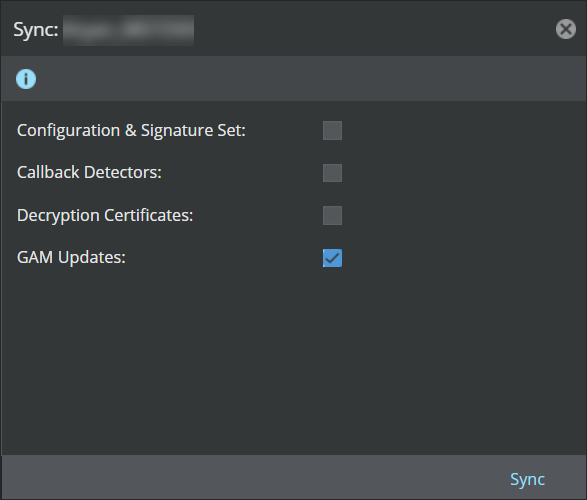

The Sync: <Device Name> window is displayed with GAM Updates check-box selected. If there are any other pending deployments, the respective check-boxes will also be selected by default. You may uncheck any of them if you want to skip their deployment.
Note
The Manager provides an option to concurrently deploy pending changes onto multiple Sensors. When you select multiple Sensors for deployment, a Bulk Sync window is displayed with all check-boxes selected by default. You may uncheck any of them if you want to skip their deployment.
Click Sync to begin the deployment.
GAM Updates selected for synchronization.png "Sync_GAM_updates_2.png")

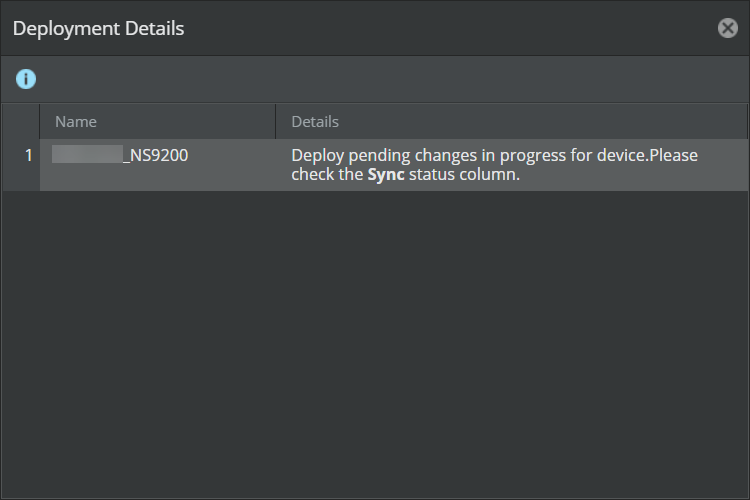

A Deployment Details dialog-box is displayed, click
.png)
.Deployment Details.png "GUID-B3B5892E-D545-4354-94AE-8DCD033234F6-low.png")
You may click the
.png)
icon to refresh the Sensors tab and view the latest Sync status.Upon successful deployment, the status is displayed as Synchronized, and the deployed version of GAM is displayed under the Protections column.
Note
You can also view the deployment status in Manager → <Admin Domain Name> → Troubleshooting → Logs under the Background Tasks tab. The status is displayed as In Progress during the deployment and Complete upon successful deployment. You need to refresh the tab to view the latest deployment status.
Note
If the Sync fails, it is likely that you have downloaded an incompatible GAM version. Review the compatible versions and the combinations listed in the Gateway Anti-Malware engine compatibility matrix table to ascertain if you have downloaded the appropriate version.
