This section describes the steps to verify the installation of a 40G Fail-Open module.
Verify the following to make sure your setup is working as designed.
Steps:

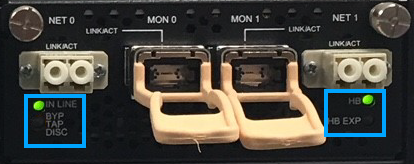

If the connection with the Sensor is in inline mode, the installation in inline mode is considered successful if:
The IN LINE LED is solid green.
The BYP/TAP/DISC LED is off.
The HB LED is flashing green.

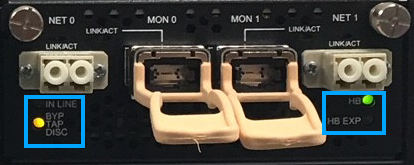

If the connection with the Sensor is in bypass mode, the installation in bypass mode is considered successful if:
The IN LINE LED is off.
The BYP/TAP/DISC LED is solid amber.
The HB LED is flashing green.
