Follow these steps to make sure your setup is working as designed.
Steps:

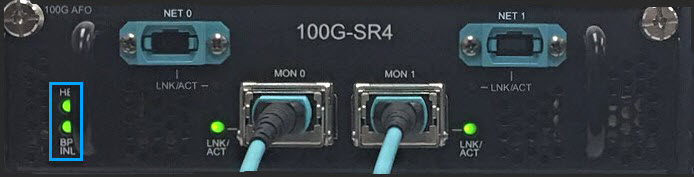

If the connection with the Sensor is in inline mode, the installation in inline mode is considered successful if:
The BP/INL LED is solid green.
The HB LED is flashing green.
If the connection with the Sensor is in bypass mode, the installation in bypass mode is considered successful if:
The BP/INL LED is solid amber.
The HB LED is flashing green.
For the network ports NET0/NET1/MON0/MON1:
The LED is solid green when the link is up and without traffic.
The LED is flashing green when the link is up and with traffic.
The LED is off when the link is down.
