View and analyze netflows and alerts in the NI Dashboard

Once the integration with the Trellix NI is enabled, you can view the flow data, L7 metadata, and alert data using the NI web UI. When you log into the NI web UI, NI Dashboard is displayed. The predefined dashboard displays a collection of widgets available for the appliance. These widgets provide high-level views of the threat intelligence gathered by the appliance.

Navigate to (or, mega menu) → Investigations → Search. The Search page is displayed. NI allows you to configure multiple dashboards as per your investigation requirement and customize each of them with the help of multiple widgets.

NI Web UI options

The Search page on NI web UI comes with the following options:

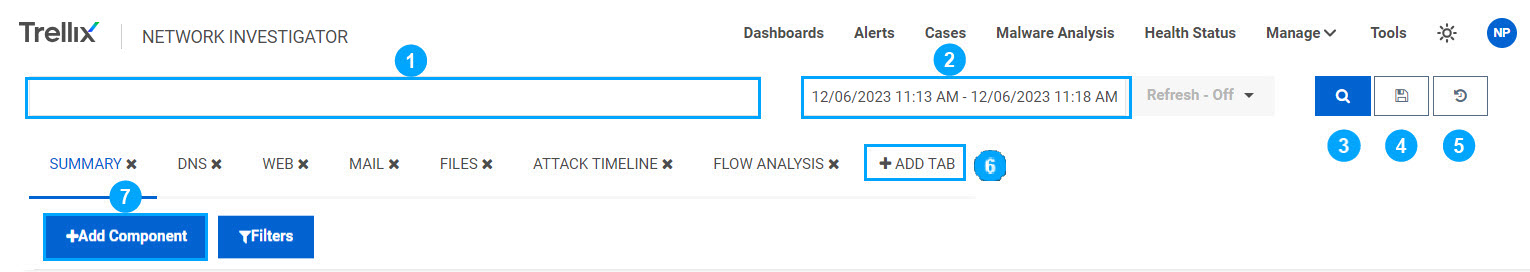

Callout	Components	Description
1	Query Bar	You can enter a single term or phrase query into the Query Bar and look for indexed metadata in the flow data, L7 metadata, and alert data displayed on the NI. You can use automatic queries or manually construct queries in the Query Bar to view and analyze specific information.
2	Time picker	It allows you to select a specific time duration while viewing and analyzing flow data, L7 metadata, and alert data on the NI. The configurable time interval options provided are 5 Minutes, 15 Minutes, 1 Hour, 6 Hours, 12 Hours, 24 Hours, 2 Days, and 7 Days. You can also select a custom time period. You can choose time interval in UTC or Local Time format.
3	or Search Icon	Clicking this Search Icon helps you run a query.
4	or Save Query button	The Save Query button helps to save a specific query in the NI for future use.
5	or Reload Saved Query button	The Reload Saved Query button provides access to all saved queries (private as well as saved) and helps run a specific query quickly.
6		This button allows you create additional tabs within the Dashboards in which you can customize widgets available to further refine the display of flow data, L7 metadata, and alert data exported to NI from Trellix IPS
7		This button enables you to add one or more widgets within a tab of NI Dashboards, some of which include Alert Summary, Bar Chart, Donut Chart, Event Table, Protocol Summary, File Info, and Group Table.

Searching and viewing search results on Event Table

The Event Table widget under the Summary tab of NI Search page displays all the flow and alert data in a tabular format. It shows the alert and flow details in JSON format, and provides a table view displaying the event timestamp, the nature of the event displayed, source and destination IPv4 address, and source and destination transport port. It also shows the search result for any search query run on NI Query bar.

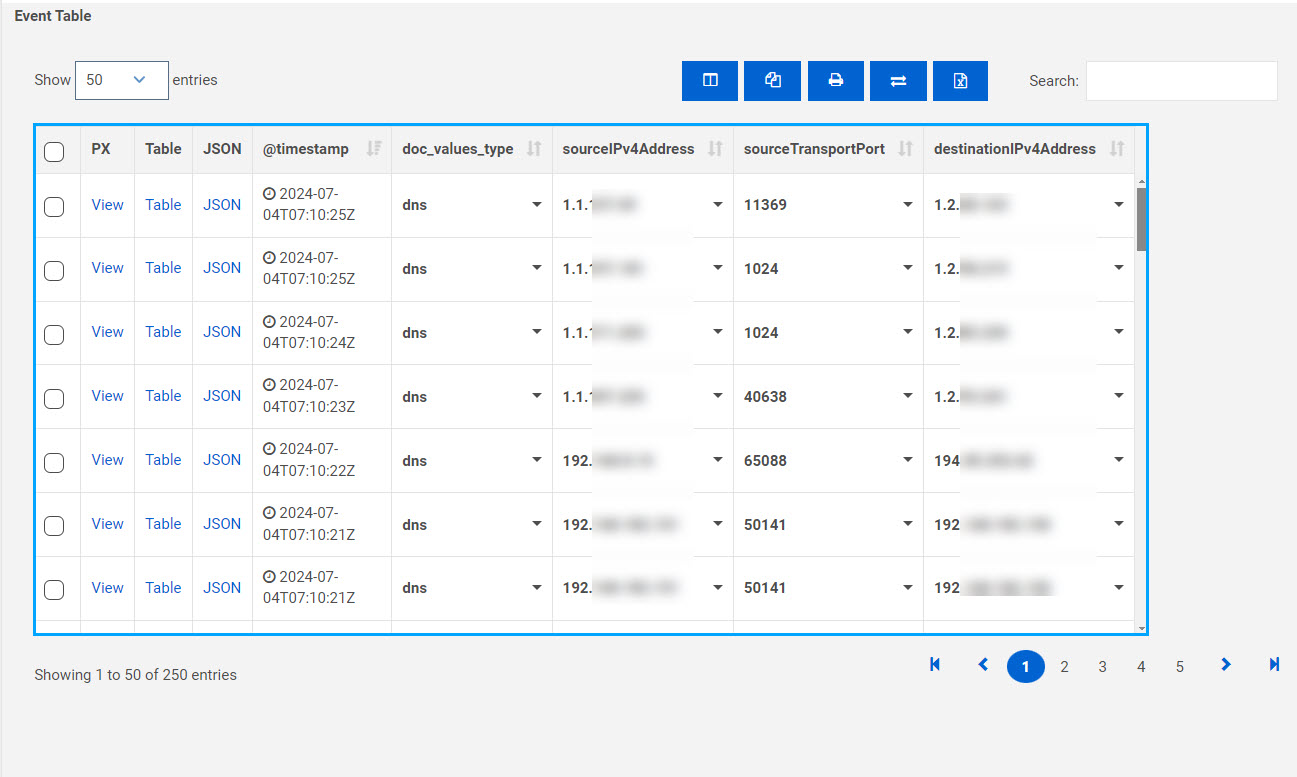

Event Table

To order to perform a search, you need to enter single terms or phrases in the Query Bar. You can combine multiple terms and phrases along with boolean operators and special characters to form a search query and look through indexed metadata fields, and then use filters to further refine your search results. You can use the automatic completion feature in the Query Bar to perform basic and advanced field searches.

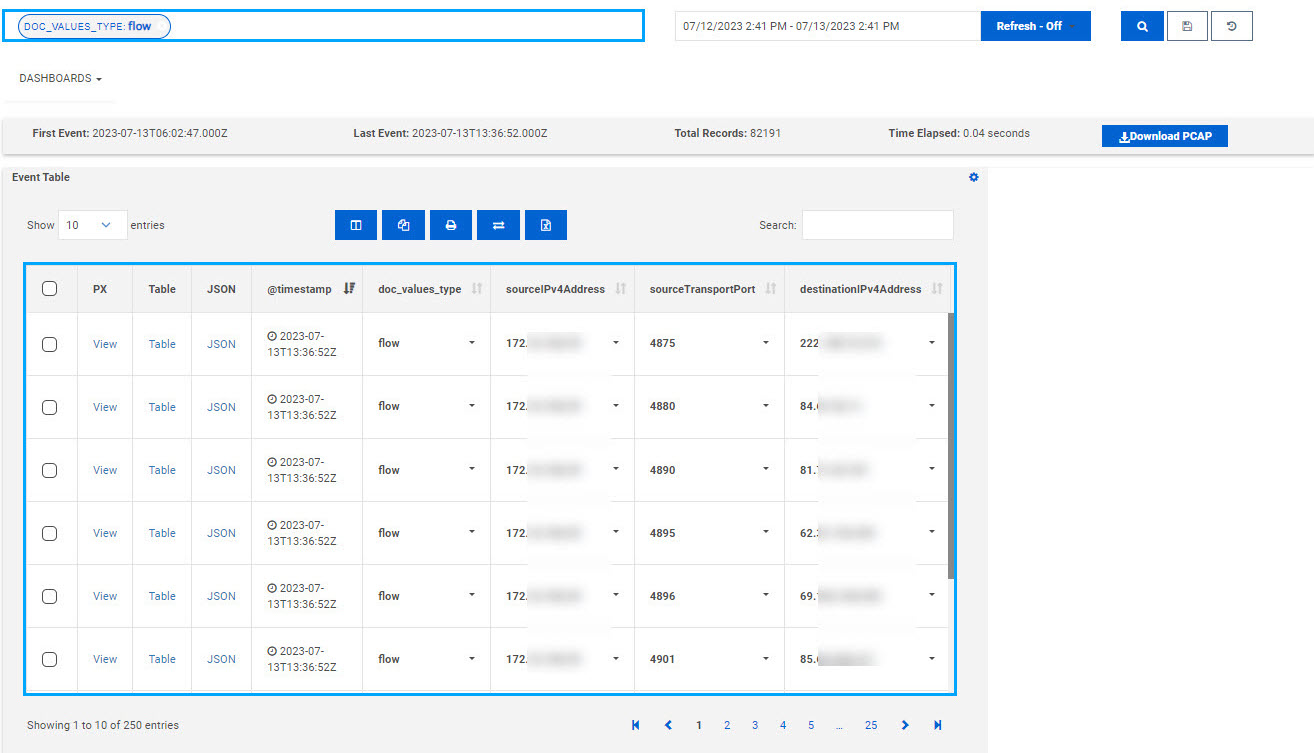

For example, if you want to view only flow data entries in the Event Table, do the following:

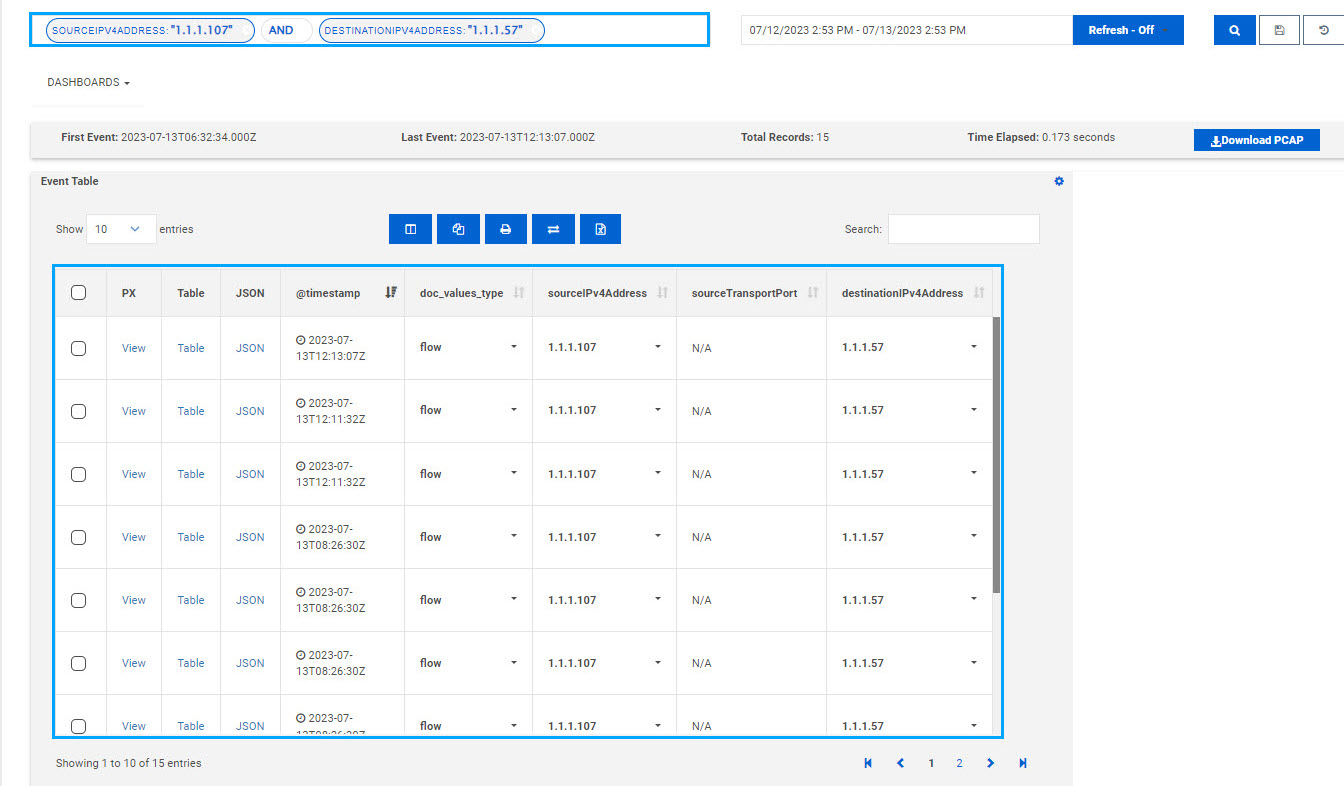

You can also combine multiple terms and phrases with boolean operators and/or special characters to form complex and advanced queries. For example, if you wish to see the alert and flow data for specific source IPv4 address and destination IPv4 address, do the following:

Analyzing flow data and alert data entries displayed on NI in JSON format

You can view and analyze flow data, L7 metadata, and alert data entries in the JSON format by clicking the JSON link in the document row of the Event Table. For an alert data entry, the JSON format contains many important fields, some of which include appliance name, IPS ID, attack category, BTP, attack severity (as listed in the confidence field), and detection mechanism. For a flow data entry, some of the notable fields include the client name, device ID, device IP, and device type.

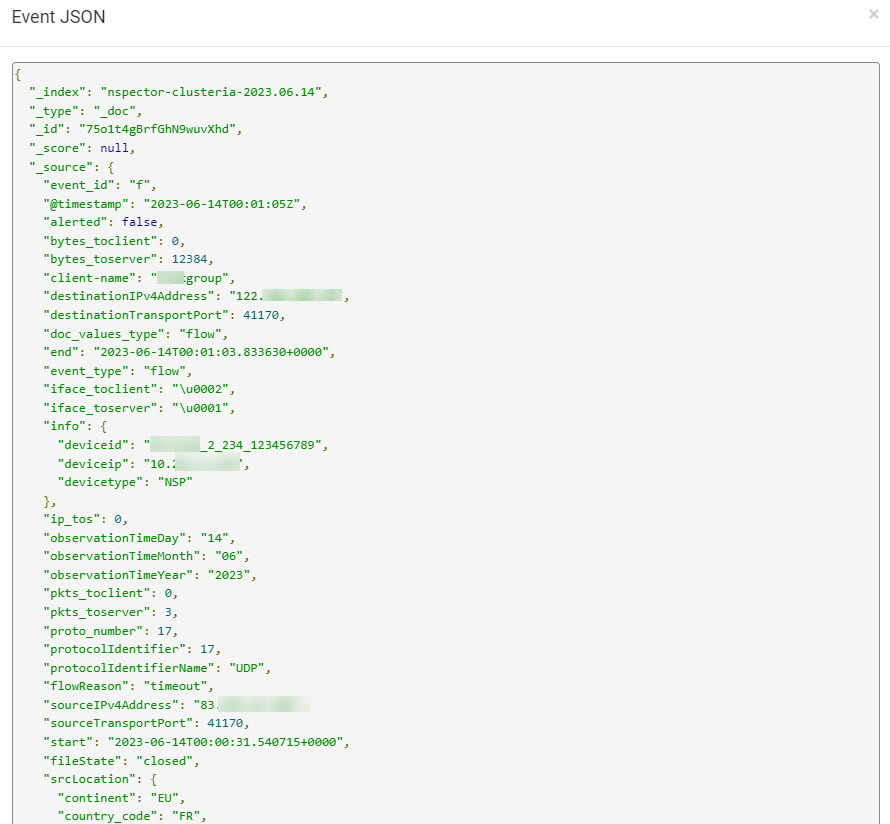

Sample JSON of a flow data entry

Sorting and Filtering options in Event Table

The Event Table comes with many sorting, filtering, and configuration options for viewing the flow and alert data and analyzing them via search query. Some of these options include the following:

Analyzing the packet View of the flow data and alert data entries on the Packets tab

You can perform a deep dive into the flow or alert data entries of your interest by viewing the associated packet data at a connection, packet, and payload level. To do so, click the checkbox(es) next to the flow/alert data entries you want to reconstruct in the Event Table and click the Reconstruct icon. NI processes the entries (or events) selected and displays the results on the Packets tab under the Dashboards page. Some of the activities that you can perform on the Packets tab include the following:

For more information on the NI platform and how to use it during the investigation of any network event, refer to Network Investigator User Guide.
