To view the firewall policies:
Click the Policy tab.
From the Domain drop-down list, select the domain you want to work in.
Select Intrusion Prevention → Policy Types → Firewall.
The Firewall policies created at the selected admin domain and its parent domain are listed. The details of the firewall policies are displayed in columns.
Option
Definition
Name
Displays the name of the firewall policy.
Description
Displays the description of the firewall policy.
Ownership and Visibility
Owner Domain — Specifies the ownership of the domain.
Visibility — Specifies the visibility level of the domain.
Editable Here — The status Yes indicates that the policy is owned by the current admin domain.
Type
Specifies the type of policy.
Last Updated
Time — Displays the time when the firewall policy was last updated
By — Displays the user who modified the firewall policy.
Assignments
Indicates the number of Sensor resources to which the policy is assigned.
You can sort the list in ascending or descending order based on any of the columns by clicking on the column heading. You can also view the Columns option to enable or disable the display of the columns by selecting or deselecting the relevant checkbox.
Double-click on the row of the policy to view the rules of that policy.
On the Access Rules tab, type in the search text field to view the access rule for the given search criteria.

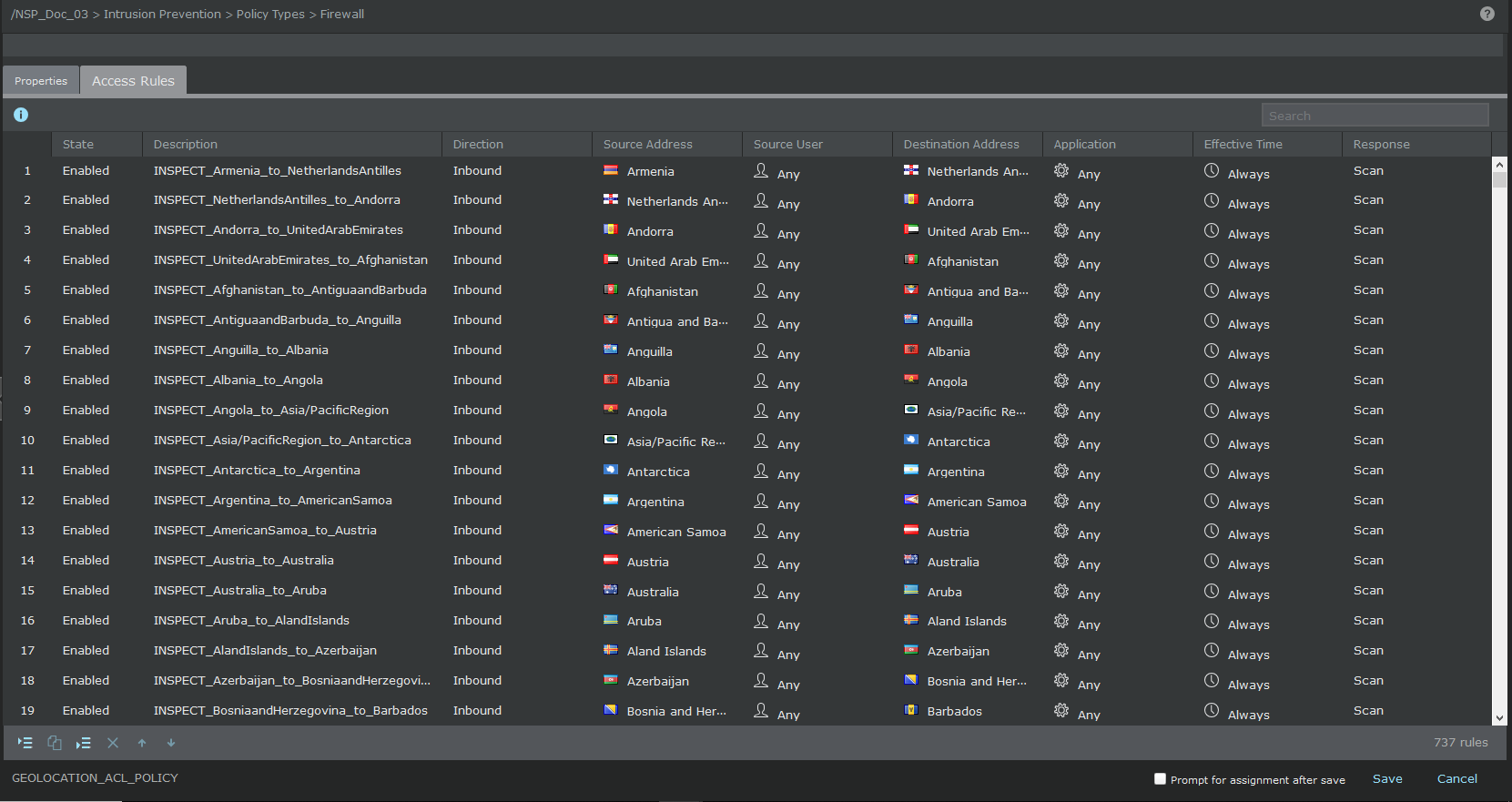

Viewing Firewall policies.png)
