View summary details of a selected Cluster

To view the summary details of a selected cluster, go to Devices → <Admin Domain Name> → Devices → <Cluster_Name> → Summary. The device Summary page is displayed.

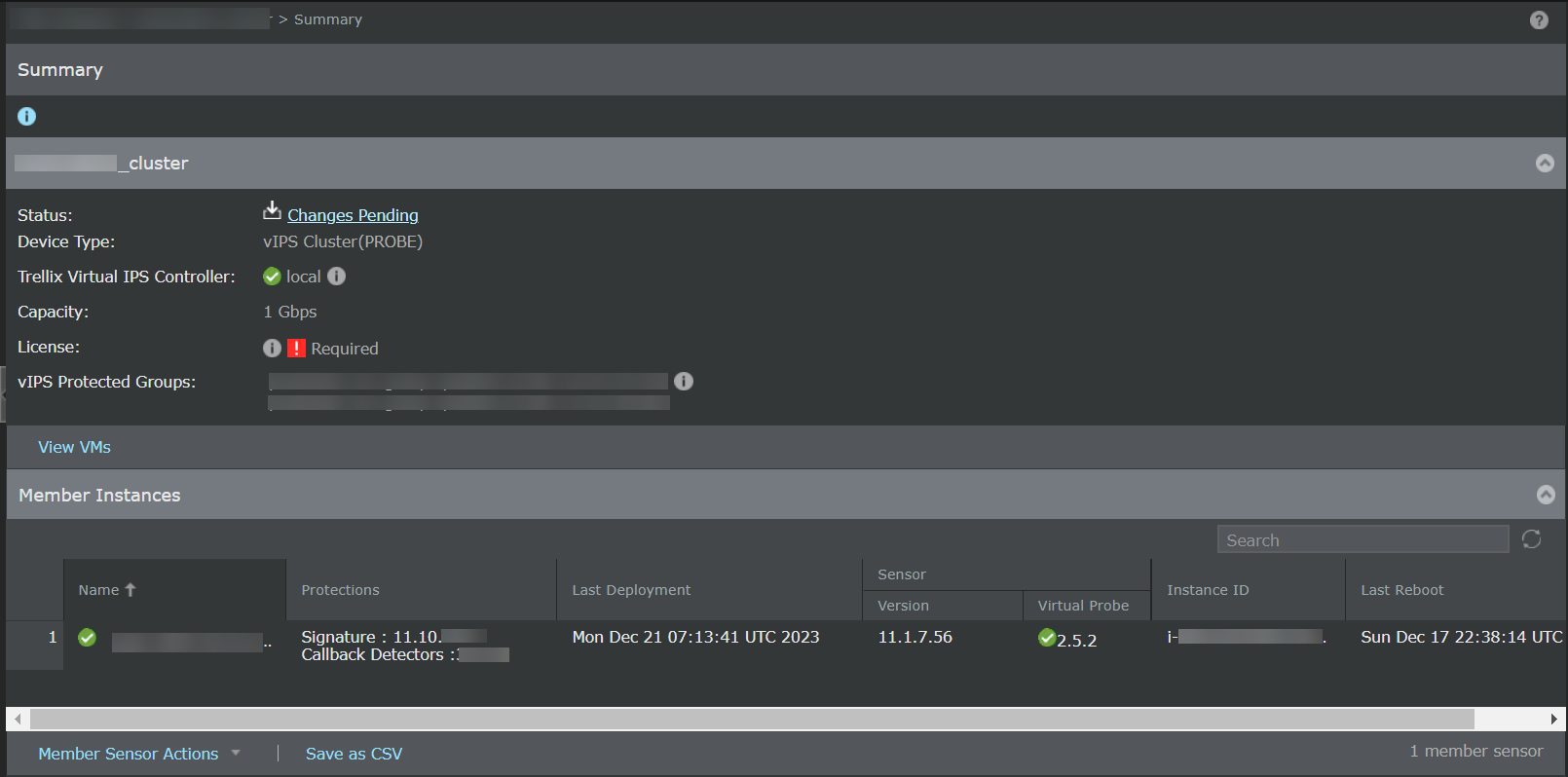

Summary details of a cluster

Option definitions

Option	Definition
Status	Displays whether there are pending changes to be deployed to the virtual security system or if it is up to date. Green indicates that the system is up to date and blue indicates pending changes to be deployed.
Device Type	Displays the type of device. Example, Cluster (GWLB).
Trellix Virtual IPS Controller	Displays the details of the controller with which the cluster and its member Sensors are associated. Note This does not apply to GWLB cluster(s).
Capacity	Displays the total capacity of license required for all member Sensors in the cluster.
License	Displays the license status of the cluster. You can assign a license by clicking the icon. However, you cannot perform the license assignment if the cluster is empty. In such scenarios, the icon will be hidden. The license status can be one of the following options: Required: The reason can be one of the following: The license has not been assigned. The license is assigned, but its capacity is less than the cluster's configured capacity. Note If a combination of expired and insufficient licenses exists, the insufficient license takes a higher priority. Present: The sufficient license is present and valid. Expired: The license is assigned, but one or more licenses are expired. Grace Period: The assigned license(s) have expired and are now running on a grace period. Note A grace period of 30 days is provided to subscription based system licenses after they expire.
vIPS Protected Groups	Displays the name of the vIPS Protected Group.
Member Instances
Name	Displays the status and name of the instance.
Protections	Displays the Software, Signature set, and Callback Detector versions of the Sensor.
Last Deployment	The timestamp of previously deployed pending changes.
GWLB Status	Displays the status of GWLB. Note This applies to GWLB cluster(s).
Sensor	Version - Displays the version of the Sensor. Virtual Probe - Displays the version of the probe. Note Virtual Probe does not apply to GWLB cluster(s).
Instance ID	Displays the ID of the instance.
Last Reboot	Displays the time stamp of the last reboot performed.

You can also perform the following actions:

To restart the Sensor, click Member Sensor Actions → Reboot.
To view the traffic statistics, click Member Sensor Actions → Traffic Statistics.
To run a diagnostic trace for the Sensor, click Member Sensor Actions → Run diagnostics.
To export the Sensor software information in the form of a .csv file, click Save as CSV.
