The DoS Profile page of an interface details the current status of DoS learning mode policies applied to an interface. DoS policy was inherited from the domain upon Sensor addition, but might have changed due to one of the following:
Application of a different policy.
Creation of one or more custom DoS IDs for an interface.
Note
At the Interface-x level, you cannot see status for DoS IDs created within a subinterface. The view at this level is strictly for the parent and direct child relationship. For more information on childDoS policies of a subinterface, refer to Viewing the applied DoS policies of a sub-interface section.
In the DoS learning mode, a profile is built over a 48-hour period to determine the normal traffic pattern. Once the initial learning is complete, the Sensor detects traffic that is outside of the normal parameters while continuing to take measurements of network traffic and adjusting the profile accordingly. Activity outside of the normal parameters raises an alert. To view the DoS profiles, do the following:
For individual Sensors, navigate to Devices → <Admin Domain Name> → Devices → <Device Name> → Troubleshooting → Denial of Service → Profiles.
For Sensors in HA pair, navigate to Devices → <Admin Domain Name> → Devices → <Device Name> → Member Sensors → <HA Pair Node> → Troubleshooting → Denial of Service → Profiles.
(Applicable to NS9600 and NS9500 only) For Sensors in a stack and a HA pair of stack Sensors, navigate to Devices → <Admin Domain Name> → Devices → <Device Name> → Member Sensors → <Stackname-node id> → Troubleshooting → Denial of Service → Profiles.
.png "GUID-83AEC6D4-C8A8-4D36-8A91-0E7FBA138B03-low.png")

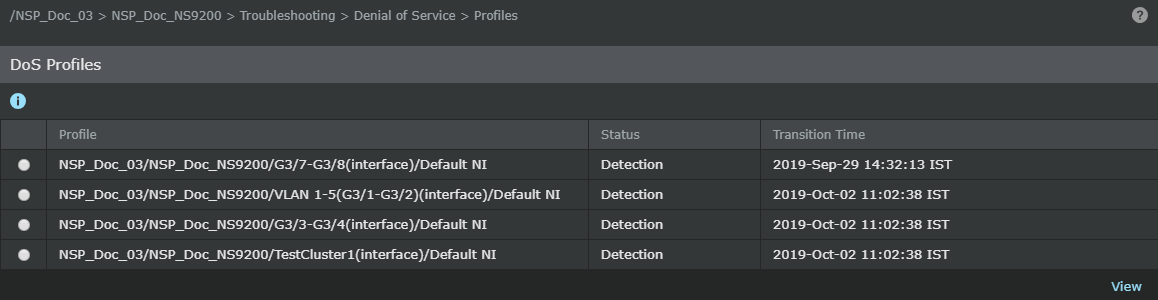

The following fields are available in the DoS Profiles page:
Option | Definition |
|---|---|
Profile | The subinterface or VLAN/CIDR ID where a DoS profile was applied. Default NI refers to all traffic that is not a part of an interface subdivision, that is, subinterface, VLAN tag, or CIDR block. |
Status | Lists whether the policy is currently learning the network behavior or actively detecting. Learning means the initial traffic profile is being created by determining a normal traffic baseline. This learning period requires 48 hours. Detection means the profile has finished the initial learning period and traffic checking for abnormal levels is in progress. |
Transition Time | The exact time when the learning profile started analysis or when the active detection for the learning profile began. The Status field indicates which process is currently operating. |

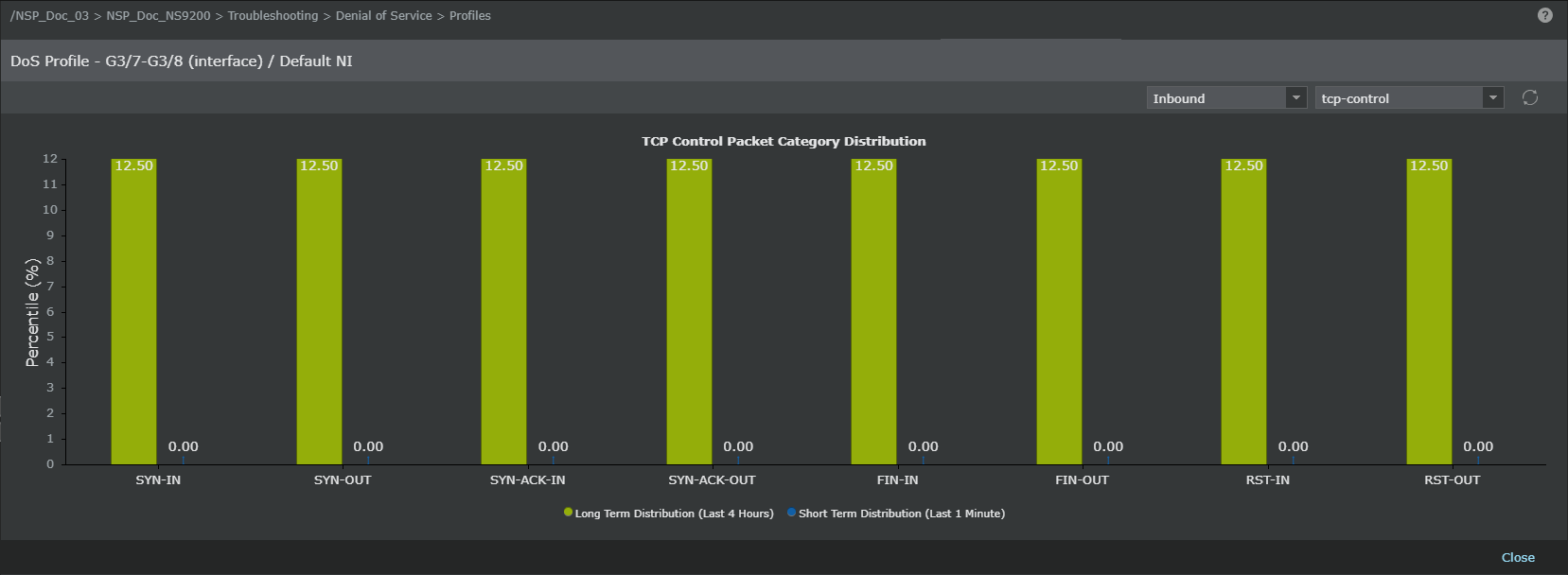

Optionally, select a DoS ID and click View to display rate data for the measures in the DoS profile applied to the selected DoS ID.
You can change the measure by toggling the direction and measure drop-down list. To return to the DoS Profiles page, click Close.
.png "GUID-08B6BD39-EE7F-4663-9430-50AD3E09D074-low.png")
