Identify the ports on Generation 5 hardware and connect those cables.
Generation 5 hardware contains management ports so they can be managed from Trellix ESM. The following images identify the management and collection ports.
Caution
Do not connect cables to ports not labeled for a specific purpose.

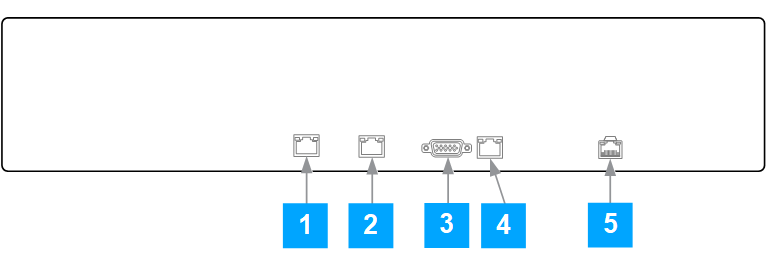

Trellix ESM
Note
Port assignments are the same on 1U and 2U chassis.
Management 1
Management 2
VGA video
Data (not used)
IPMI

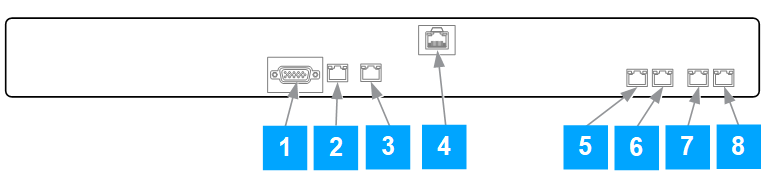

1U chassis
Slot numbers | Ports and connectors | Additional information | For Non-HA | For HA |
|---|---|---|---|---|
1 | Monitor connection | - | - | - |
2 | Eth0 | Label - MGMT 1 | Configured with unique IP addresses | - |
3 | Eth1 | Label - MGMT 2 | Additional MGMT port | Shared IP address |
4 | MGMT | Label - IPMI (Intelligent Platform Management Interface) | Remote management access | |
5 | Eth2 | - | Additional MGMT port | - |
6 | Eth3 | - | Additional MGMT port | - |
7 | Eth4 | - | Additional MGMT port | Connection to Eth4 (Secondary receiver) - Heartbeat |
8 | Eth5 | - | - |

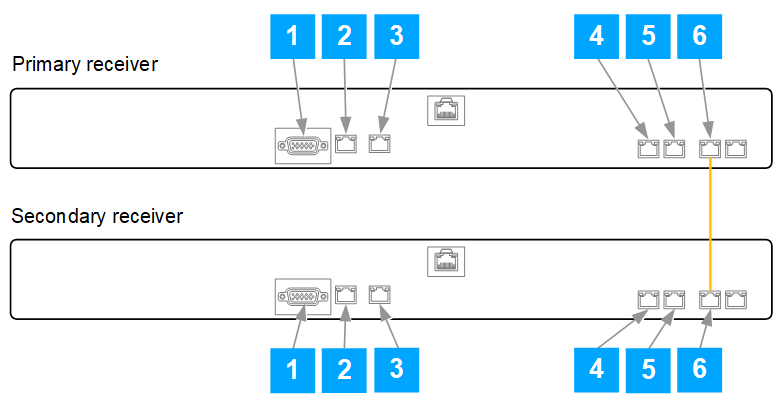

1U chassis HA connections
Monitor connection
Eth0 - connected to the switch
Eth1 - connected to the switch
Eth2 - can use as additional MGMT port
Eth3 - can use as additional MGMT port
Eth4 of primary receiver is connected to Eth4 (labeled 7) of secondary receiver

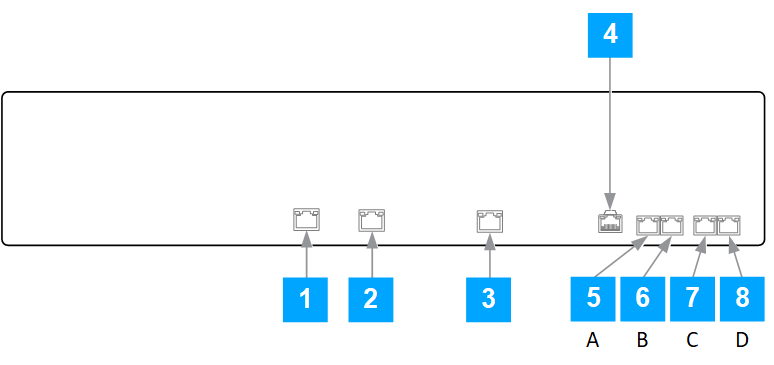

2U chassis
Slot numbers | Ports and connectors | Additional information | For Non-HA | For HA |
|---|---|---|---|---|
1 | Eth0 | Label - MGMT 1 | - | - |
2 | Eth1 | Label - MGMT 2 | Additional MGMT port | Shared IP address |
3 | Serial RJ45 | Serial connection | - | - |
4 | MGMT | Label - IPMI (Intelligent Platform Management Interface) | Remote management access | |
5 | Eth2 | Label - A | Additional MGMT port | - |
6 | Eth3 | Label - B | Additional MGMT port | - |
7 | Eth4 | Label - C | Additional MGMT port | Connection to Eth4 (Secondary receiver) - Heartbeat |
8 | Eth5 | Label - D | - |

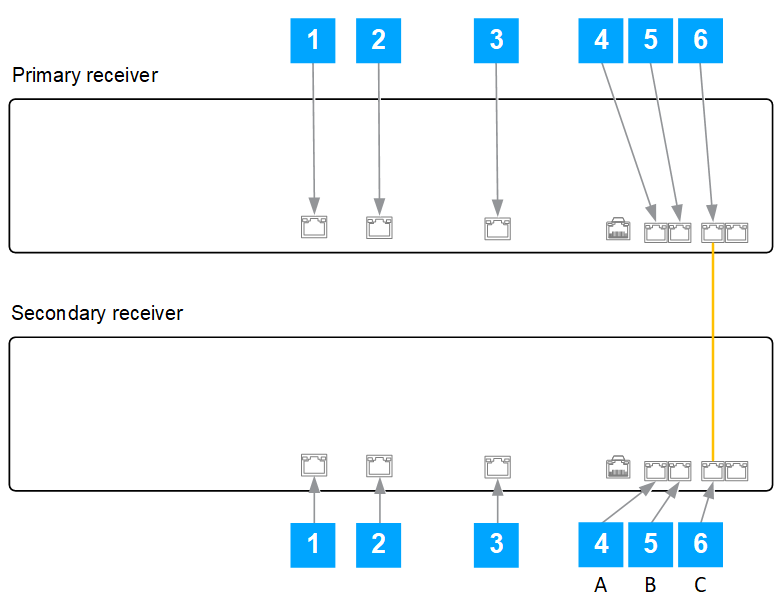

2U chassis HA connections
Eth0 - connected to the switch
Eth1 - connected to the switch
Serial connection RJ45 - not used
Eth2 - can use as additional MGMT port
Eth3 - can use as additional MGMT port
Eth4 of primary receiver is connected to Eth4 (labeled 7/C) of secondary receiver
