Configure Sensor Monitoring Ports

Prev Next

Prerequisites:

  • The Sensor must be set up with trust established with a Manager server.

  • The Sensor has a free port pair which can be deployed in in-line Active fail-open mode.

  • It is assumed that you have inserted the necessary transceiver modules into the Sensor if you have completed cabling the Sensor and the Fail-Open module.

When you set up a Sensor for the first time, its ports are disabled by default. The Sensor ports must be manually configured for in-line fail-open operation.

Steps:

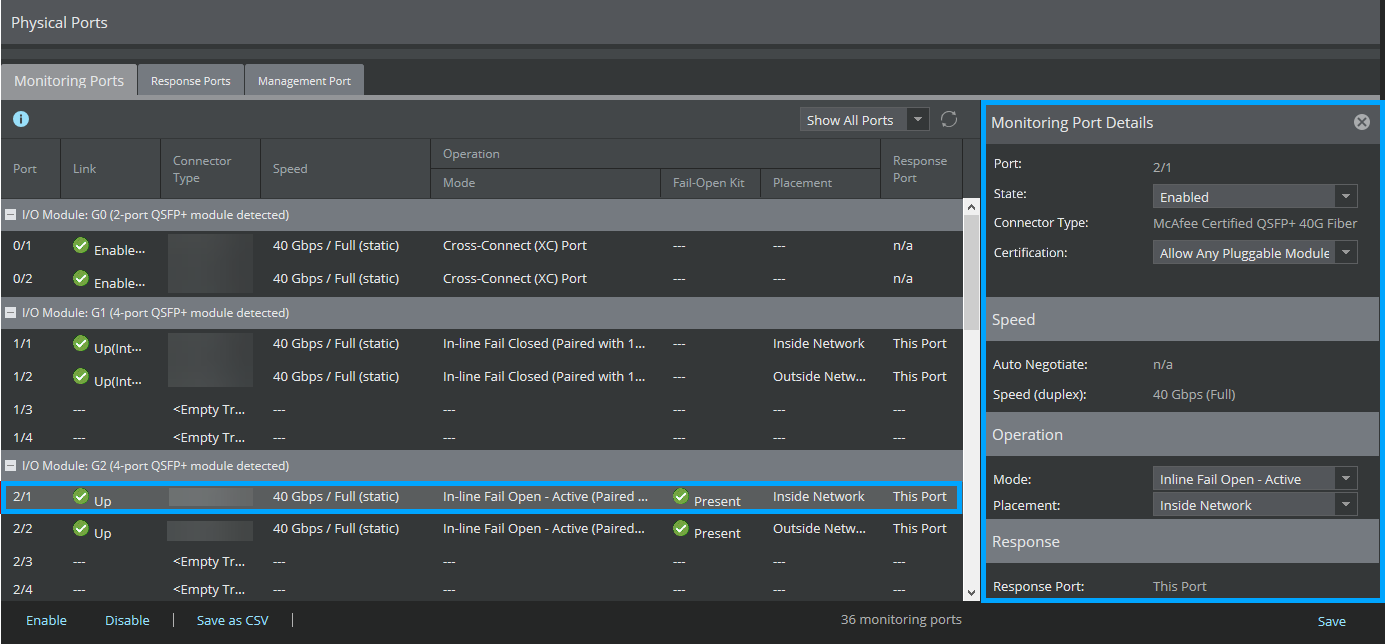

  1. In the Manager, go to Devices → <Admin_Domain_Name> → Devices → <Device_Name> → Setup → Physical Ports.

  2. Double-click on one of the configurable ports, say G2/1.

    A configuration panel appears on the right side of the window.

  3. Click the State drop-down and select Enabled.

    You are asked whether you want to proceed since this configuration will also impact port G2/2.

  4. Click Yes to proceed.

    This enables port G2/1-G2/2.

  5. Click the Mode drop-down and select In-line Fail-Open – Active.

  6. Click the Placement drop-down and select Inside Network or Outside Network, depending on how you want to configure your ports.

    Trellix recommends choosing Gx/1 as the Inside Network and Gx/2 as the Outside Network.

  7. Click Save.

Result: The Sensor and Fail-Open modules are set up. When traffic passes through the ports, you will notice the port link status changes to Up and turns green.
