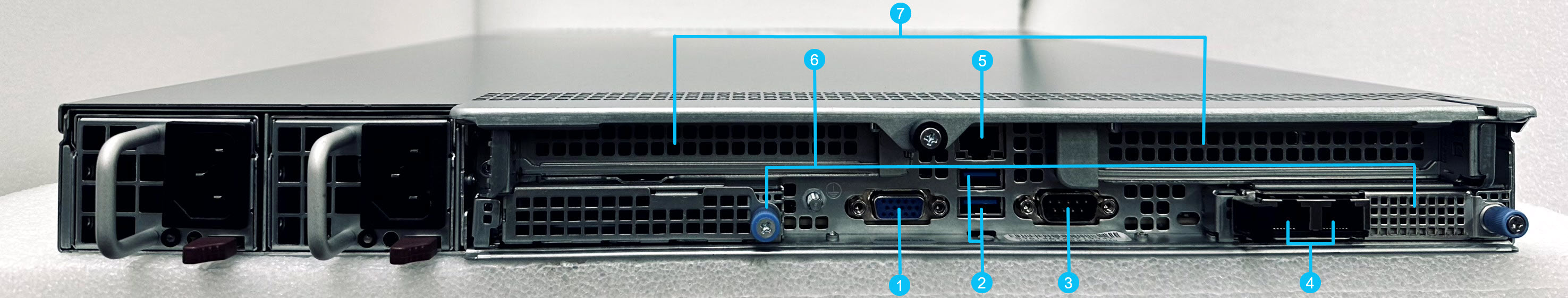

The Manager Appliance back panel contains ports and connectors for configuration.
Item | Port | Description | Function |
|---|---|---|---|
1 | VGA port (1) | Standard video output port | For connecting a local monitor for initial setup and troubleshooting. |
2 | USB 3.0 ports (2) | USB Type-A ports | For connecting peripherals like keyboards, mice, or external storage. |
3 | COM port (1) | Serial port (DB9) | Used for serial communication (null modem db9_f to db9_f type cable, 115200 8 N 1), often used for console access (RS-232). |
4 | Management ports | NIC 1 and NIC 2 connectors | Dedicated management ports. |
5 | IPMI LAN (1) | RJ45 Ethernet port (1 GbE) | A separate port dedicated to the Intelligent Platform Management Interface (IPMI), used for out-of-band management (remote monitoring, power control, KVM-over-LAN). |
6 | AIOM/OCP 3.0 Slots (2) | Open Compute Project (OCP) 3.0 slots | These slots are used for Advanced I/O Modules (AIOM), which provide the server's main network connectivity (e.g., 10G/25G/100G Ethernet, InfiniBand). The specific LAN ports here depend on the installed AIOM card. |
7 | PCIe Expansion Slots (2) | Full-Height, Half-Length (FHHL) slots | These are typically covered slots for installing optional PCIe 5.0 x16 expansion cards, such as high-speed network cards, HBAs, or GPUs. |
The redundant power supplies feature two hot-swap 1200W Titanium Level power supply modules (one on the left, one on the right) for reliable, redundant operation.
Note
The BIOS menu is only accessible via VGA and keyboard connections; serial connections are not supported. Access the BIOS setup menu by pressing the Delete key and entering TRELLIX when prompted.
