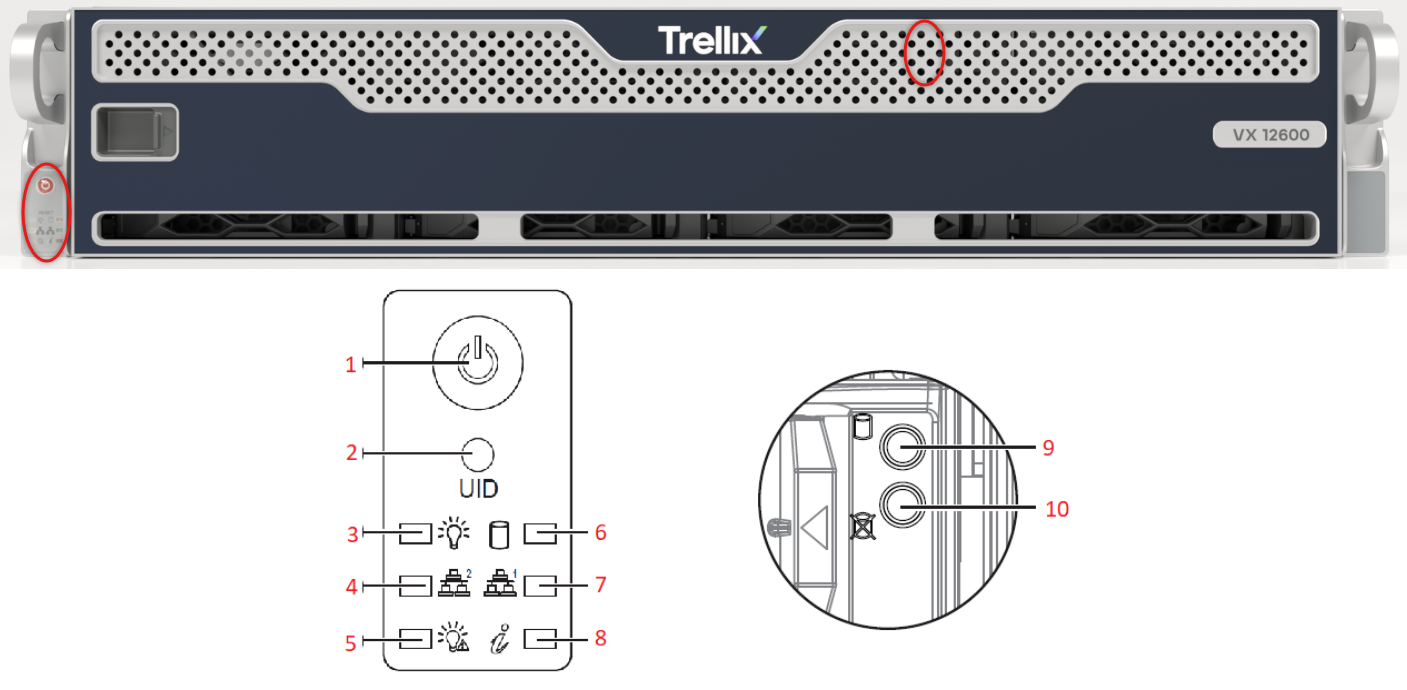

1. Power button | The main power switch applies or removes primary power from the power supply to the server but maintains standby power. Unplug the appliance before servicing. | |
2. Reset Button | Reboots the system. | |
3. Power LED | Steady on | Power on |
Blinking at 4 Hz | Checking BIOS/BMC integrity | |
Blinking at 4Hz and "i" LED is blue | BIOS firmware updating | |
Two blinks at 4 Hz, one pause 2 Hz and "i" LED blue | BMC firmware updating | |
Blinking at 1 Hz and "i" LED red | Fault detected | |
4. LAN 1 LED | Indicates network activity on a LAN when flashing; defaults to the first two ports of CPU1 AIOM. | |
5. Power Failure LED | Indicates a power supply module has failed. | |
6. HDD Activity LED | Indicates activity on the hard drive when flashing. | |
7. LAN 2 LED | Indicates network activity on a LAN when flashing; defaults to the first two ports of CPU1 AIOM. | |
8. Information LED | Alerts operator to several states: | |
Red, solid | An overheat condition has occurred | |
Red, blinking at 1 Hz | Fan failure, check for an inoperative fan | |
Red, blinking at 0.25 Hz | Power failure, check for a non-operational power supply | |
Red, solid, with Power LED blinking green | Fault detected | |
Blue and red, blinking at 10 Hz | Recovery mode | |
Blue, solid | UID has been activated locally to locate the server in a rack environment | |
Blue, blinking at 1 Hz | UID has been activated using the BMC to locate the server in a rack environment | |
Blue, blinking at 2 Hz | BMC is resetting | |
Blue, blinking at 4 Hz | BMC is setting factory defaults | |
Blue, blinking at 10 Hz with Power LED blinking green | BMC/BIOS firmware is updating | |
9. Drive Device LED | Each drive carrier has two LED indicators: an activity indicator and a status indicator. | |
10. Drive Device LED | Each drive carrier has two LED indicators: an activity indicator and a status indicator. | |
Drive Carrier LED Indicators
The chassis includes externally accessible SAS/SATA drives.
Each drive carrier has two LED indicators: an activity indicator and a status indicator. For RAID configurations using a controller, the meaning of the status indicator is described in the table below.
LED Type | Color | Blinking Pattern | Meaning of Blinking Pattern |
|---|---|---|---|
Activity LED | Blue | Solid On | Idle SAS/NVMe drive installed. |
Blinking | I/O activity. | ||
Off | Idle SATA drive installed. | ||
Status LED | Red | Solid On | Failure of drive with RSTe support. |
Blinking at 1 Hz | Rebuild drive with RSTe support. | ||
On for five seconds, then off | Power on for drive with RSTe support. | ||
Blinking at 4 Hz | Identify drive with RSTe support. | ||
Green | Solid Green LED | Safe to remove NVMe device. | |
Amber | Blinking at 1 Hz | Do not remove NVMe device. |

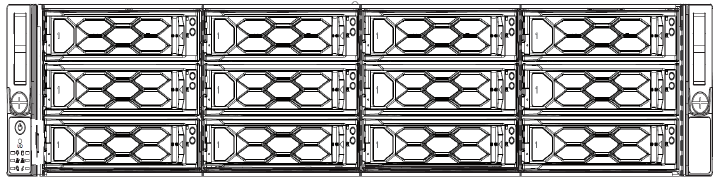

Chassis
Disk Drive Carrier: Each carrier can house a hot-swappable disk drive. A drive slot map displays the disk slot numbers on top of the appliance.
Handle Release: Press this tab to release the handle. Use the handle to pull the disk drive carrier from the chassis.
